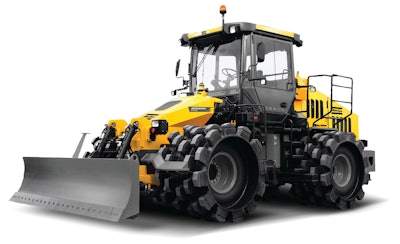

The CT3000 tamping compactor is designed to achieve specified densities on cohesive and semi-cohesive soils.
- 260-hp Cummins QSB 6.7 Tier 4 Final, turbo-diesel engine with automatic four-speed transmission
- Front oscillating axle works independently of optional strike-off blade and rigid rear axle
- Square pads of compacting drums optimized in size and pattern to maximize energy transmitted to the soil
- Drums offset by width of a pad so rear drum compacts areas not compacted by front drum
- Drum mounted on air-filled rubber tires to reduce vibration to the operator platform
- Includes a service brake with independent double circuit that acts on all four drums and a parking brake that acts on the transmission
- Hydrostatic steering allows for a steering angle of 40° to either side and a turning radius of less than 21 ft.
- Travel speed of up to 12 mph
- Spacious platform with operator-friendly controls and a swivel seat (180°) for optimal visibility
- Production capacity up to 900 cu. yds. per hour
- 25-ton operating weight
