TB216 Mini Excavator

Takeuchi's retractable undercarriage and bolt-on dozer blade extensions enable a minimum machine width of just 38.6 in.

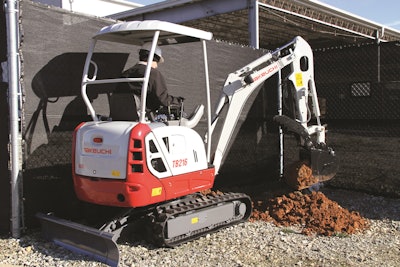

Takeuchi TB216 compact excavator side view 5492009f50f0f
Takeuchi Logo New Tag 2017

The 3,900-lb. TB216 compact excavator, which replaces the TB016, features a retractable undercarriage that makes it easy to transport and maneuver between gates and in confined areas.

  • 15-hp Yanmar Tier 4 Final engine
  • Two-speed planetary travel motor delivers a maximum 2.6-mph travel speed and comes with an automatic shift down feature for greater drive torque when turning or pushing
  • 9-in.-wide track helps provide a low ground pressure of only 4.3 psi
  • Dozer blade equipped with bolt-on extensions that can be removed to reduce overall machine width to 38.6 in.
  • Hydraulic system consists of precision pilot joysticks and variable-displacement pumps that provide optimal cycle times and 4,250 lbs. of bucket breakout force
  • Spacious deluxe cab with adjustable suspension seat
