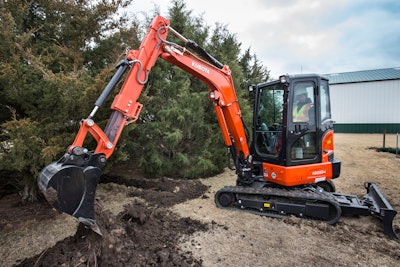

Kubota's 3-tonne KX033-4 compact excavator can carry two hydraulic attachments -- a hammer and a thumb, for example -- at the same time and both can remain plumbed into the auxiliary hydraulic system. A diverter valve diverts oil flow to one attachment at a time, so that hydraulic lines do not have to be uncoupled and reconnected when the operator wants to use the other attachment.
- 24.8-gross hp Kubota direct injection Tier 4 Final-certified engine
- 8,138-lb. breakout force and 10-ft. 6-in. digging depth
- Available extendable dipper arm provides a 12-ft. 2-in. digging depth and 18-ft. 2-in. digging reach
- Adjustable auxiliary hydraulics allow the operator to program up to five different oil flow rates controlled from a new digital control panel
- Auxiliary hydraulic circuit capable of a 15.8-gpm maximum oil flow
- Roomier cab with larger entrance and increased legroom, deluxe, reclining, high-back suspension seat and wider, updated digital display panel
- Standard third-line hydraulic return system
- Automatically shifts from high to low when needed in heavy dozing application and back to the higher speed when the load becomes less
- Optional hydraulic angle blade with standard float function and reversible and replaceable cutting edge
