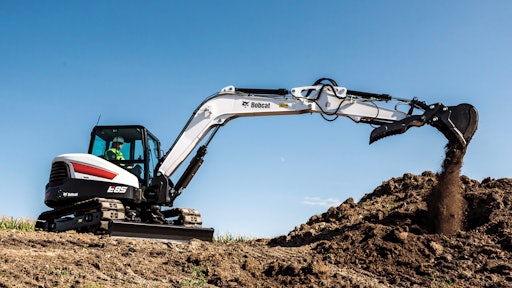

Bobcat R-Series E85 Compact Excavator

Redesigned 66-hp model features Bobcat turbocharged diesel engine technology that does not require a DPF or SCR

Bobcat R Series E85 1

The R-Series E85 features a bold, distinct design increasing operator productivity and comfort, as well as machine uptime protection. It features a 66-hp Bobcat turbocharged diesel engine that does not require a diesel particulate filter (DPF). An optimized integrated rear counterweight design enhances stability. The operator station includes a large cab opening, increased floor space and additional glass surface area, which includes an improved top window and narrower side pillars

  • 18,977-lb. operating weight, 16,269-lbf. bucket digging force and 9,754-lb. rated lift capacity
  • Features a 15-ft. 6-in. maximum dig depth, 23-ft. 6-in. maximum reach at ground level and 16-ft. 6-in. maximum dump height
  • 25.1-gpm auxiliary hydraulic flow

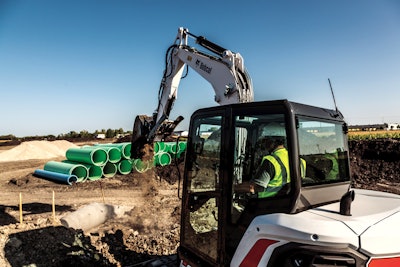

  • Bobcat E85 S6c2003 17l2 FcWider FOPS-rated cab with large opening, enhanced visibility, more floor space, redesigned fold-away travel pedals and wider seat
  • Standard, easy-to-reach control pattern selector and repositioned second auxiliary hydraulic selector switch
  • Easy access to the engine area for daily maintenance checks
  • Tubular-frame reinforced cab door
  • Lower engine compartment and relocated hydraulic valves makes it easy to access and service the machine
  • Greasing intervals extended to 50 hours for the swing and slew and to 250 hours on upper work group pivot points
  • Equipped with eight machine tie-down locations
