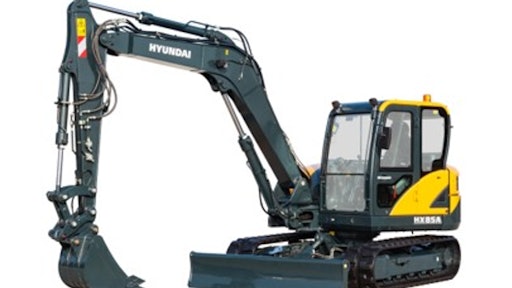

Hyundai HX85A Compact Excavator

HX85A extends size range of Hyundai compact excavator product line

The new Hyundai HX85A model is the company’s first compact excavator included among the A Series machines, and the first to be designated an HX model number. The largest of Hyundai’s compact excavator models.
The new Hyundai HX85A model is the company’s first compact excavator included among the A Series machines, and the first to be designated an HX model number. The largest of Hyundai’s compact excavator models.
Hyundai Construction Equipment Americas Inc.
Hyundai Logo

The HX85A is the company’s first compact excavator included among the A Series machines, and the first to be designated an HX model number.

  • Quiet, eco-friendly Yanmar 4TNV98C four-cylinder engine delivers 65 net hp at 2,400 rpm.
  • Operating weight of 20,390 lbs. including the 12-ft. 10-in. two-piece boom
  • Maximum digging depth of 14 ft. 2 in.
  • .33-cu.-yd. standard bucket capacity (SAE heaped)
  • Load-sensing hydraulics allow for multi-functional operation and precise machine movements
  • Comfortable, spacious cabin with 7-in. touchscreen monitor, adjustable auxiliary hydraulic circuits, proportional joystick controls and soft-grip dozer blade lever
  • Optional four-way dozer blade, rear view camera and travel alarm
  • Hi MATE telematics system enables full remote monitoring of machine activity and performance
