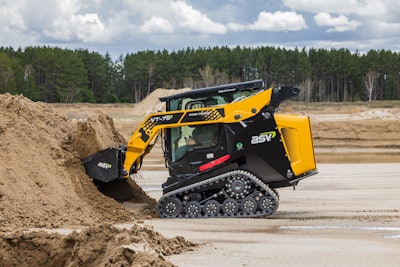

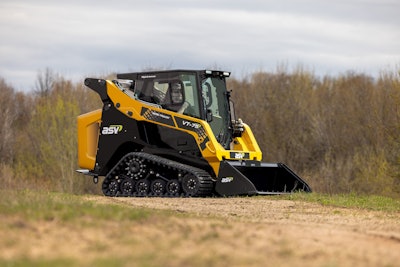

ASV has introduced the VT-75 Posi-Track compact track loader. Powered by a Yanmar engine, the vertical-lift, 74.3-hp machine is capable of at-height work, loading trucks and many other tasks in construction and landscaping applications.
“The VT-75 truly allows our ASV customers to do more,” said Peter Ovrebo, product management director — North America, Yanmar Compact Equipment North America. “It fits right into the heart of the construction market where operators can make the best use of it. With the combination of its high rated operating capacity, loading capabilities, reliable Yanmar engine and ASV performance, it’s a valuable asset for operations big and small.”
Power
The 8,310-lb. compact track loader’s Yanmar Tier 4 Final diesel engine transmits power and flow directly to the attachment thanks to the machine’s high-performance hydraulics and direct-drive pumps. A 10-ft., 5-in. lift height combined with a 2,300-lb. rated operating capacity and 6,571-lb. tipping load makes jobs like loading over the side of high dump trucks possible.
ASV’s Posi-Track rubber track undercarriage provides VT-75 operators with traction and mobility. The system includes a suspension made up of two independent torsion axles per undercarriage. These provide a smooth ride over various terrain and contribute to a high speed of 9.1 mph. The flexible track and suspension also result in ground contact, traction and pushing power even in steep, wet, muddy and slippery conditions. A ground pressure of 4.5 psi minimizes turf damage and contributes to flotation in tricky conditions. The ability to transit over a variety of conditions is emphasized with 12-in. ground clearance, providing passage over large obstacles.
Performance
An optional work-tool positioner allows access to a preset attachment angle at the touch of a button, enabling operators to set it for repetitive applications. Similarly, optional return-to-position technology allows a preset for the height of the loader arms. Operators can use the features separately or together, depending on the work. Optional self-leveling technology supports this by automatically leveling the load both while raising the arms and lowering them.
The VT-75 is maneuverable thanks to various optional speed and movement-related features. The model accomplishes grading and tight-space work due to auto two-speed technology, which provides a transition between low- and high-speed modes. Speed-sensitive ride control adds to that by supporting material retention at higher speeds but switching off automatically when conducting slower-moving tasks.
The hydraulic and cooling systems allow the machine to work in more conditions at maximum power, meaning the VT-75 can operate at 100% load, 100% of the time from -40 °F to 118 °F ambient temperatures.
Operator Experience
With 360-degree visibility, operators can keep an eye on the attachment and surroundings. Safety is further enhanced with the model’s roof escape hatch. A 7-in. color display consolidates various switches as well as provides access to monitoring tools, the view of the optional backup camera and the ability to keep track of service schedules and history. Additionally, a fully adjustable and suspended seat accommodates more body types.
ASV offers its Yanmar SmartAssist telematics system as an optional feature to change how operators experience their equipment. Machine owners can make use of features ranging from being notified of errors remotely to real-time operational status updates and daily work reports. Integrated theft protection helps secure owners’ investments, allowing users to set a range from a specific location and trigger an alert if the machine moves outside of that range.
ASV
Serviceability
The machine can be serviced from top to bottom by ASV dealers. Accessible components include a swing-out radiator, top hood and side doors that provide access to all sides of the engine compartment, including filters and other daily checkpoints. The machine’s cooler also swings out with the door, allowing access for cleaning.
