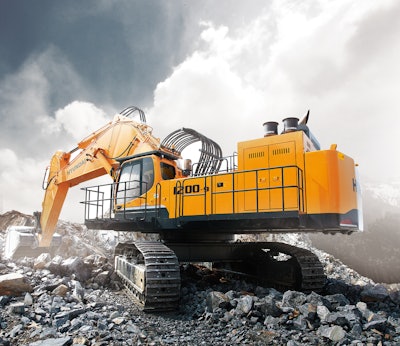

R1200-9 Excavator

130-ton mass excavation machine is designed for the mining and quarrying sector

Hyundai Construction Equipment Americas Inc.

The R1200-9 mass excavation machine has an operating weight of 260,140 lbs. and is powered by a 740-hp Cummins QSK23-C electronically controlled engine with auto engine overheat and anti-restart features.

Boasts a dig depth of 26 ft. 3 in., bucket digging force of 125,540 lbs. and bucket capacity of 8.76 cu. yds.
Redesigned hydraulic system with improved pump flow and improved spool valves, enhanced hydraulic valves, precision-designed variable volume piston pumps, fine-touch pilot controls and enhanced travel functions
Improved arm-in and boom-down flow regeneration and control valve technology
Auto boom-swing priority function
Strengthened undercarriage equipped with covers to protect the travel motors and hoses, full track rail guards to keep track links in place, standard grease cylinder track adjusters and shock-absorbing springs
Customizable cabin with advanced 7-in.-wide LCD display with power and work mode selection, self-diagnostics, optional rear-view camera, maintenance checklists, start-up machine security and video functions integrated into the cluster

Download a PDF of Hyundai's R1200-9 brochure

Fill out the form below to request more information about R1200-9 Excavator
