Volvo EC380EHR & EC480EHR High Reach Demolition Excavators

Latest generation of Volvo high reach excavators optimized for heavier attachments with attachment management system for up to 20 different hydraulic attachments

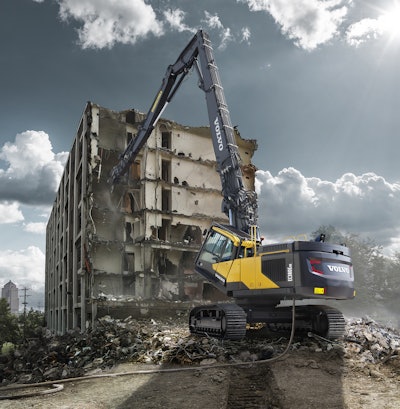

Volvo EC380EHR excavator 5536572f94cc5
Volvo Iron Mark

Volvo's EC380EHR and EC480EHR high reach demolition excavators have been optimized to carry heavier attachments plus it features an attachment management system that stores settings for up to 20 different hydraulic attachments

  • Working range over 360 degrees
  • Electro-hydraulic system uses intelligent technology to control on-demand flow
  • Doors and engine cowl feature micro-mesh screen to keep particles out
  • Full-length track-chain guards prevent sharp objects from lodging int racks
  • Swing-ring protection guard
  • Increased maximum pin height widens the working range for improved productivity
  • Heavy-duty hydraulically extendable undercarriage retractable for transportation
  • Volvo Tier 4 Final engine
  • Hands-on tilt function with buttons on the joysticks
  • Total moment indicator warns when machine is approaching maximum safe working load
  • Frame-mounted Falling Object Guard
  • Rear and side-view cameras
  • Hydraulic modular joint uses hydraulic dual full pin lock mechanism to release digging equipment and change from high-reach demolition boom to standard
  • Can be equipped with dust suppression system with a 7.9 gpm hydraulic lifting pump
  • Standard six-year subscription to Volvo CareTrack telematics system
  • Max cab tilting angle: 30 degrees
  • Operating weight: 113,410 lb. (EC380EHR); 141,140 lb. (EC480EHR)
  • Pin height: 75 ft. 8 in. (EC380EHR); 92 ft. 4 in. (EC480EHR)
  • Pin reach: 47 ft. 6 in. (EC380EHR); 52 ft. 9 in. (EC480EHR)
  • Operating angel: 20 degrees (EC380EHR); 15 degrees (EC480EHR)
