Komatsu PC290LCi-11 Intelligent Machine Control Hydraulic Excavator

Automatic excavating features adjust bucket height as the operator controls the arm and automatically stops when the bucket edge reaches the design target

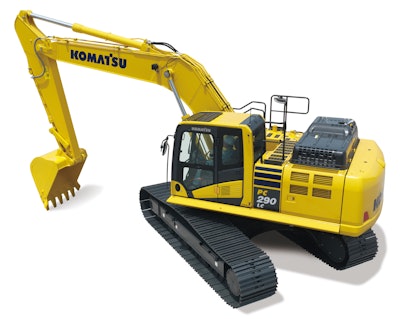

Komatsu Pc290 L Ci 11 Walkaround

The 36-ton class PC290LCi-11 Tier 4 Final emissions-certified hydraulic excavator features intelligent Machine Control (iMC), which is based on a unique sensor package, including stroke sensing hydraulic cylinders, an IMU sensor and GNSS antennas. This technology utilizes 3D design data loaded in the control box to accurately check its position against the target to semi-automatically limit over-excavation.

  • Intelligent Machine Control Joysticks provide a semi-auto/manual-mode switching and design surface offset function that can be operated with switches on the control levers
  • Auto Grade Assist allows the boom to adjust bucket height automatically as the operator moves the arm, tracing the target surface
  • Auto Stop Control ensures the work equipment automatically stops when the bucket edge reaches the design surface
  • Minimum Distance Control controls the bucket by automatically selecting the point on the bucket closest to the target surface
  • Orientation of the facing angle compass’ arrow shows the operator the facing angle, relative to target surface
  • Machine and design surfaces shown in realistic 3D on the Intelligent Machine Control monitor with large 12.1-in. screen and touchscreen icon interface
  • 196-hp, SAA6D107E-3 6.69-liter, Tier 4 Final engine
  • Includes KOMTRAX level 5 technology and is covered by the Komatsu CARE complimentary maintenance program for the first three years or 2000 hours

[BROCHURE] Komatsu PC290LCi-11 Hydraulic Excavator

Fill out the form below to request more information about Komatsu PC290LCi-11 Intelligent Machine Control Hydraulic Excavator
