Caterpillar 335 Excavator

Design increases fuel efficiency and lowers maintenance costs up to 20% and improves performance up to 45%.

Cat 335 Excavator
Caterpill 10210679

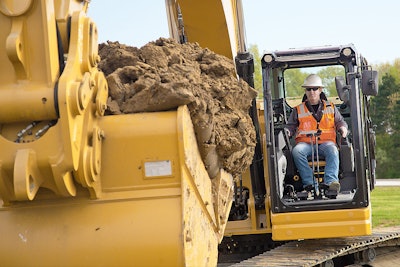

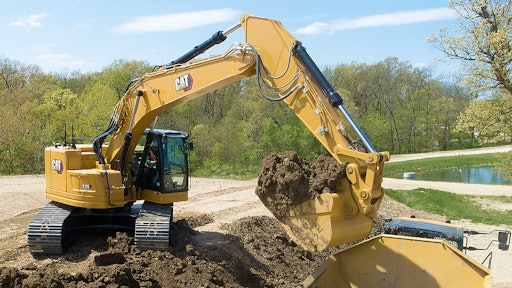

Weighing in at less than 80,000 lbs., the Cat 335 Next Gen hydraulic excavator delivers a compact tailswing radius for enhanced maneuverability, making it suited for working on space-restricted jobsites. Increased stick and bucket cylinder sizes provide 15% greater digging forces to power through hard ground and asphalt. Hydraulic power is increased by 20% to boost productivity. In addition, integrated, simple-to-use Cat technologies  assist operator performance, no matter the experience level, to increase machine efficiency by up to 45% compared to manual operation.

  • 273-hp C7.1 engine meets stringent emissions standards with a no-maintenance aftertreatment system
  • Standard engine configuration offers high ambient temperature operating capacity of 126° F, cold start capability of 0 ° F and 15,090-ft. altitude capability
  • Power, Smart and Eco selectable operating modes with one-touch low idle help to reduce fuel consumption by up to 10%
  • Auxiliary hydraulic options for a range of Cat attachments increase versatilityCat 335 Excavator2
  • Includes Cat Payload technology, Lift Assist, Cat Grade with 2D, Cat Grade with Assist and Cat Link telematics
  • Available Cat Remote Services allow companies to troubleshoot and update machine software
  • Choice of reengineered Deluxe and Premium cab designs featuring vibration-reducing viscous mounts, adjustable operator seats, automatic climate control and ergonomically positioned, customizable joysticks
  • Flat engine hood design, smaller cab pillars and large panoramic windows enhance visibility
  • Standard rearview and right-view cameras can be upgraded to offer 360° visibility
  • Extended, more synchronized maintenance saves up to 20% on maintenance costs
  • All daily service points accessed from ground level

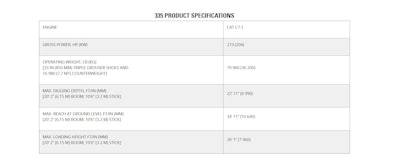

Cat 335 Specs
