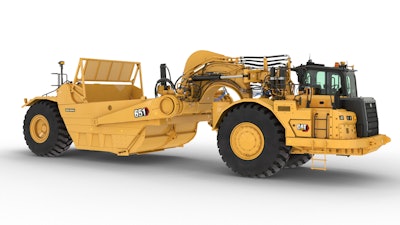

Caterpillar 651 Wheel Tractor Scraper

New models offers a 44-cu.-yd. heaped capacity and 52-ton rated load.

Cat 651 Wts Cm20191210 0e33f 73983

The single engine Cat 651 Wheel Tractor Scraper (WTS) reenters the market with upgrades to the powertrain, controls, hydraulics and structure, designed to deliver enhanced levels of productivity. Offering a 44-cu.-yd. heaped capacity and 52-ton rated load, the new model shares the same bowl design and many components as the 657, allowing companies with mixed fleets to stock fewer repair parts and lower owning costs.

  • Advanced Productivity Electronic Control System (APECS) fully integrates the transmission and engine drivetrain to provide smooth and responsive shifts
  • Electronic clutch pressure control features advance shift control logic for smoother speed and directional shifts
  • 629-hp Cat C18 Tier 4 Final/Stage V-compliant diesel engine and eight-speed transmission for a top speed of 34.8 mph
  • Same larger cab as the 657 includes a redesigned HVAC system, comfort seat that rotates up to 30° to the right for loading and high-pressure steering system that requires significantly less steering effort
  • Electrohydraulic implement system provides improved multifunction capability
  • Advanced ride management eliminates end-stroke events of the seat suspension cylinder
  • Optional Work Area Vision System (WAVS) shows the cutting edge, right side and rear of machine on a 7-in. in-cab color display
  • Available sequence assist reduces up to 14 individual operator commands per cycle with a single button
  • Payload estimator option uses bowl lift cylinder pressure to accurately calculate machine payload to within +/- 5% of actual scaled weight
  • Ground speed control allows desired top speed to be set and the machine finds the gear that works best for the engine and transmission
  • Hydraulic wet disc brakes
  • Standard Product Link

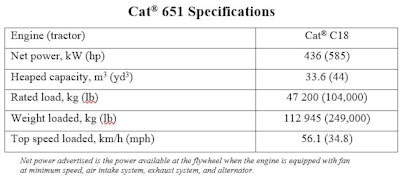

Cat 651 Wts Specs
