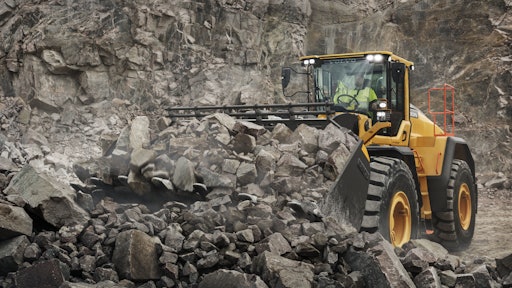

Volvo L260H Wheel Loader

Volvo's 34-tonne L260H wheel loader was designed for heavy-duty applications and is purpose-built to load on-highway trucks in just two even passes

March 9, 2017
Volvo Construction Equipment
Volvo L260 H T4f 1 22266
Volvo Iron Mark

Built for heavy-duty applications, the L260H wheel loader is a high-production machine that can load a truck with 26 tons in just two passes. To help it take on the toughest jobs, it offers larger bucket sizes, 15% greater payload, 10% improved fuel efficiency, and 5% more horsepower and torque over previous models. It was introduced with two new buckets specifically designed for the machine – the Rock bucket and Rehandling bucket.

Volvo L350 H 58f78c09be128The 34-tonne unit is powered by a 416-hp Volvo D13J Tier 4 Final engine that generates a high torque (1,728 ft.-lbs.) at low engine speeds to minimize emissions and fuel consumption. The high-pressure hydraulic system allows for faster cycle times and increased lift force.

  • Redesigned Z-bar linkage lift arm provides a 66,453.5-lbf. lift capacity, 63,778.3-lbf. breakout force and dump height of 10.2 ft.
  • OptiShift technology integrates the Reverse By Braking function and lock-up torque converter to further reduce fuel consumption
  • Fully Automatic Power Shift transmission shifts gears to match engine and travel speed to the best gear ratio
  • Driveline lock-up improves drive response, rimpull, incline performance and fuel efficiency
  • Volvo Care Cab with onboard Volvo Co-Pilot displa and optional Load Assist
  • Load-sensing, high-pressure hydraulic system
  • Optional Boom Suspension System absorbs shock and reduces bouncing and bucket spillage

[VIDEO] How Volvo Raised Fuel Economy 10% on the L260H Loader with 6% More Power

[BROCHURE] Volvo L260H Wheel Loader


Request More Information
Fill out the form below to request more information about Volvo L260H Wheel Loader
