Volvo Penta 5- and 13-liter Stage V Engines

Air inlet throttle combined with the uncooled exhaust gas recirculation and electrical exhaust pressure governor deliver highly effective heat management of the engine

February 15, 2018

Volvo Penta

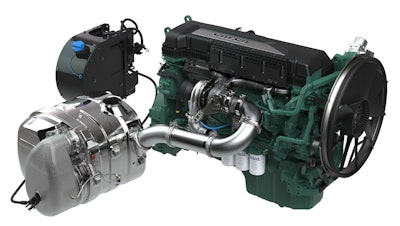

D13 engine with exhaust aftertreatment system (EATs

The TAD1381-1385VE (D13) 13-liter Stage V six-cylinder engine has a maximum output of 405 kW (551 hp) at 1,900 rpm and the TAD580-582VE (D5) 5-liter four-cylinder engine has a maximum output of 160 kW (218 hp) at 2,200 rpm.

Air inlet throttle combined with the uncooled exhaust gas recirculation and electrical exhaust pressure governor deliver highly effective heat management of the engine
Low heat rejection from the complete system means less cooling is required and lower than average exhaust temperatures
Exhaust aftertreatment system (EATS) includes a diesel oxidation catalyst, diesel particulate filter, selective catalytic reduction and ammonia slip catalyst
Passive regeneration during normal operation with no high-temperature regeneration
Compact with hardware layout and electrical interfaces that are compatible with engines of earlier emissions legislation
TAD880-884VE 8-liter Stage V engine now delivers a power output of 250 kW (340 hp), and increase of 15 kW (20 hp)
