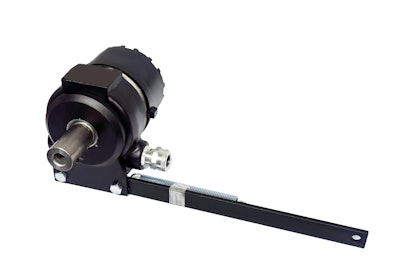

Feeder Tailshaft Tachometer

Systems Equipment's Feeder Tailshaft Tachometer is designed to accurately indicate the surface speed of a feeder belt by measuring the rotational speed of the unpowered tailshaft idler.

Systems Equipment Feeder Tailshaft Tachometer 5627d3d135dfb
Systems Logo 300dpi 10910154

Systems Equipment's Feeder Tailshaft Tachometer is designed to accurately indicate the surface speed of a feeder belt by measuring the rotational speed of the unpowered tailshaft idler.

  • Proprietary noise filter totally eliminates spurious output signals at zero shaft speed caused by vibration or noisy decoders
  • 1000-pulse per revolution high-level output for maximum measurement precision and electrical noise immunity
  • 24-volt peak-to-peak differential output signal dramatically improves signal-to-noise ration and directly interfaces to SYSTEMS’ equipment
  • SYSTEMS’ proprietary Lightning Quick Disconnect electronically disconnects the component whenever the system power is turned off
  • Differential pulse output eliminates tachometer cross talk
  • Rugged, sealed-cast housing designed specifically for the asphalt industry
  • Comes complete with weld-on coupling, stabilizing bar and spring
