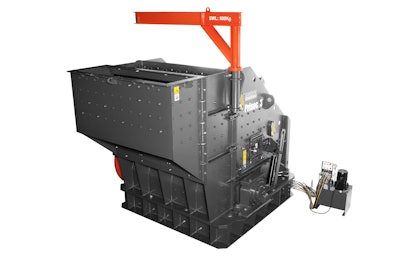

The 61,178-lb. CI531 primary and 65,367-lb. CI532 secondary Prisec TM 3 Horizontal Shaft Impact (HSI) crushers have the ability to be configured into either a primary or secondary crusher operating mode.
- Single-stage crushing also possible with the ability to recirculate material to the primary versions of the crushers
- Tonnage throughput (nominal) of 441 to 772 (CI531) and 276 to 441 tph (CI532)
- Maximum feed size of 1,000 (CI531) and 350 mm (CI532)
- Infinite hydraulic curtain adjustment combined with a brake positioning system to relieve pressure and setting when un-crushable objects enter the crusher
- “Banana” shaped self-sharpening hammer design helps to keep the contact heads sharper during operation
- Key safety interlock system ensures safe maintenance and prevents accidental opening of the crusher and inspection doors
Fill out the form below to request more information about Prisec TM 3 CI531 and CI532 HSI Crushers
