IROCK
Designed For Longevity

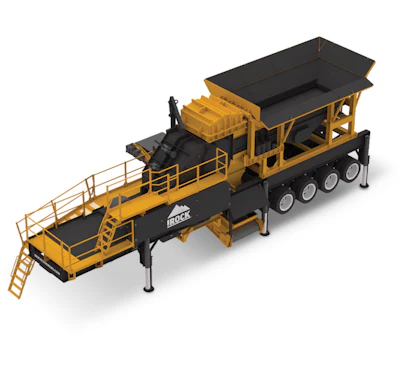

With Hardox wear liners used on all surfaces contacting material, the WI-800 is designed to last through millions of tons of production.
Removable Quad Axle System
Designed to be easily removable to protect the axles from damage when setup in a single location for extended periods of time.
Designed & Assembled In The USA
Utilizing domestic and globally sourced components and fabrications.
- Full Length Catwalks: Provides safe service access to the chamber, drive motor, feeder and hydraulic components.
- Run-On Jacklegs: Eliminates the need for cribbing and provide a stable platform for operation with fine 3/8” adjustment intervals.
- Removable Hopper: Hopper can be removed for transport as a single piece lift minimizing setup & disassembly times.
- Oversized 10-Groove Sheaves: Provides an efficient transfer of torque to the crusher and minimizes belt slippage.
Specfications:
- Hopper: 20ft Fully Wear Plate Lined Hopper
- Feeder: 60” x 20ft Deister Vibrating Grizzly Feeder
- Grizzly Bar Spacing: Adjustable, 2-3/4” as Standard
- Chamber: Hazemag HPI-H-1515MB Impactor
- Crusher Inlet Lid: Heavy Duty (w/ dual chain curtains)
- Drive Motor: 500HP Toshiba Electric Drive
- Underpan Feeder: 61” Wide w/ Hardox Liners
- Discharge Conveyor: 54” Wide Toughflex Belt
- Conveyor Drive: Dual WEG 20HP Geared Motors
- Service Crane System: Plant Mounted Gantry Crane
- Service Platforms: Full Catwalk Service Access
- Weight: Est. 170,000 lbs
