2400X Wood Hog Horizontal Grinders

Morbark's 2400X Wood Hog horizontal grinders can process yard waste, brush and other mixed woody feedstock into saleable product.

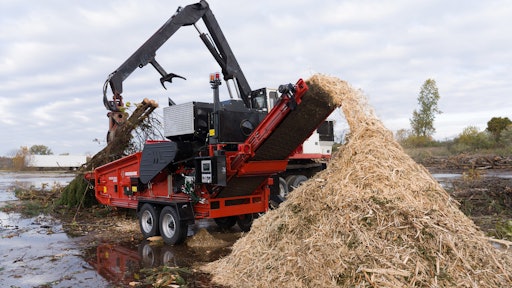

Morbark 2400 X Action 12x8
Morbark Logo

Morbark's 2400X Wood Hog horizontal grinders can process yard waste, brush and other mixed woody feedstock into saleable product.

  • Designed to be modular
  • Available in multiple configurations
  • Isuzu 4HK1, Tier 4 Final, 188-hp electronic diesel engine
  • Available with electric power
  • Infeed system with on 20-in. diameter top compression feed roll with internal drive
  • 53-in. by 8-ft. 2-in. smooth rubber belt or optional steel chain infeed conveyor
  • 9-ft.-long by 52-in.-wide infeed floor
  • Infeed flares and cleated belly belt
  • Adjustable manual folding infeed tray adds 3 ft. to infeed length
  • 22 in. by 49.25 in. down turn hammermill system
  • 93-gal. fuel tank
  • Single, side-load grate system
  • 36-in.-wide chevron discharge conveyor belt available in a single section stationary 9-ft. 6-in. height conveyor or folding 14-ft. 6-in. height conveyor; can be equipped with optional magnetic head drum for ferrous metal removal
  • Adjustable backside flat idler
  • Morbark Integrated Control System (MICS)
