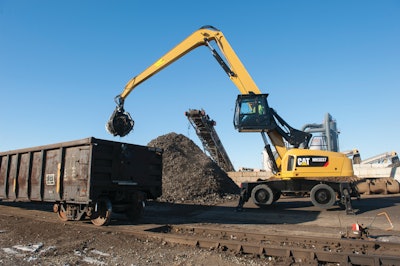

The 82,900-lb. MH3037 is a purpose-built machine featuring a patented “ground entry and exit” with a step-in cab that lowers to the front or the side of the machine, enhancing convenience and safety for operators and service personnel.
- 58-ft. maximum vertical reach and 52-ft. maximum horizontal reach
- Features an 8.2-rpm maximum swing speed and 62,000-lb.-ft. maximum swing torque
- 225-hp ACERT C7 engine with an electronically controlled, mechanically actuated, unit-injector fuel system
- Comes with a 29-ft boom or can be equipped with a short 19-ft 8-in. or long 23-ft. 6-in. front configuration
- Closed-center, one-pump, load-sensing implement hydraulic system with electrohydraulic pilot control
- Hydraulic functions divided between the upper and lower main control valves
- Independent, closed-loop swing system maintains swing priority at all times
- Limited-slip differentials on both the front and rear axles provide true all-wheel-drive performance
- Variable displacement hydraulic motor and two-speed transmission provide high- and low-speed travel with creeper speed capability
- Adjustable limiter prevents work tool contact with the cab, and load-holding valves on hydraulic cylinders prevent sudden uncontrolled drop of the boom, stick, cab or outriggers in the event of a failed hydraulic hose
- Comes equipped with PL522 Cat Product Link
