MH3049 & MH3059 Material Handlers

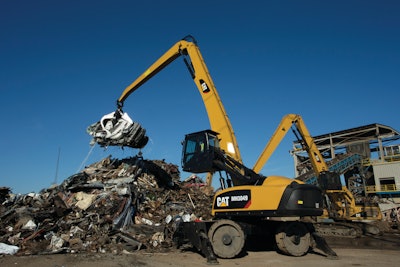

Cat Mh3049 Material Handler 10915215
Caterpill 10210679

The MH3049 and MH3059 wheeled material handlers use a closed-center, two-pump, load-sensing implement hydralic system with electro-hydraulic pilot control allowing hydraulic pumps to generate only as much oil flow and pressure as required for an application.

Caterpillar, Exodus Machines Form Material Handler Alliance

  • Cat ACERT C9 8.8L engine
  • Oversized pins and bushings
  • Regenerate boom-down oil flow
  • Adjustable cab height up to an eye level of 18.75 ft. (MH3049) and 23.5 ft. (MH3059)
  • Impact-absorbing falling objects guarding system
  • Adjustable limiter prevents work tool contact with the cab
  • Automatic lubriaction system on adjustable working-time interval
  • Medium-pressure flow from separate valve for tool rotation
  • High-pressure cirucit from main pumps to operate open/close functions of typical tools
  • Lower frame's design distributes loads and reduces stress
  • "Ground entry and exit" with step-in cab


  • Rated power: 300
  • Operating weight; 111,000 lbs.
  • Max horizontal reach: 58 ft. 5 in.
  • Max vertical reach: 64 ft.
  • Max travel speed: 7.5 mph
  • Max swing speed: 7 rpm
  • System Pressure: 4,800 psi
  • Max Swing Torque: 79,000 lb.-ft.


  • Rated power: 325
  • Operating weight: 130,000 lbs.
  • Max horizontal reach: 63 ft. 4 in.
  • Max vertical reach: 70 ft. 4 in.
  • Max travel speed 7.2 mph
  • Max swing speed: 7 rpm
  • Max swing torque: 97,000 lb.-ft.
  • System Pressure: 4,800 psi
