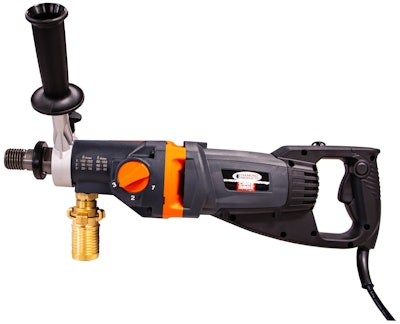

The Diamond Products CB215 hand-held drill motor is a lightweight drill for coring up to 3-in. diameter holes by hand or up to 6 in. mounted on a core rig. This motor has a three-speed gear box with slip clutch and locking gear lever. A D-shaped handle is available on the drill.
A side handle is used for stability, which can be removed to mount on a rig. The CB215 features an integrated convertible port that allows change from water feed for wet drilling to through-the-spindle dust collection for dry drilling. The motor includes a carrying case, wrench, as well as wet and dry attachments.
This electric motor is powered by 115 volts and 1,800 watts. The performance ratings are 1,000 rpm, 1,600 rpm and 4,450 rpm, allowing you to dial in the correct speed for the bit being used. An LED load indicator light alerts the user if too much pressure is applied.
The CB215 hand-held drill motor is part of the CORE BORE line of drilling products and is one of many hand-held options from Diamond Products.
