Construction Equipment Gallery September 2009

A roundup of construction products, services and construction equipment available to help you improve efficiency, productivity and safety on the jobsite.

1254342523534 10291938

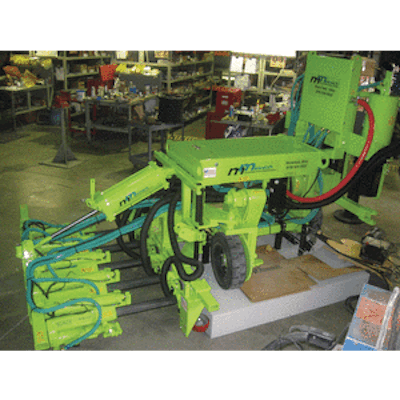

A-5SCW Dowel Pin Drill


The A-5SCW five-gang, self-propelled, cantilevered dowel pin drilling machine comes with a wireless remote.

  • Remote operation allows the operator to stand in the grade for added safety
  • Pointer enables easy alignment for the next set of holes
  • Includes an auto-crab feature, flip-top panel and standard auto controls
  • Quick-change depth adjustment
  • Crab steering is now a flip switch function


Minnich Mfg. Inc.

Curb Fox 5000


The Curb Fox Model 5000 now features a 16-gpm closed loop drive pump for the travel circuit.

  • Paves efficiently at 1 fpm on large curbs and can move around the jobsite at 150 fpm
  • Allows simple plug-in addition of a third vibrator for sidewalk sections (up to 6 ft. wide)
  • Main piston pump offers a 22-gpm capacity
  • Optional 8-ft. belt conveyor driven by the standard hydraulic pump package and equipped with a 24-in. hydraulic shift cylinder


Curb Fox Equipment (formerly Messinger Inc.)

G10-43A Telehandler


The G10-43A model telehandler is suited for use in commercial and residential construction applications including steel erection and framing.

  • Includes standard outriggers, a maximum capacity of 10,000 lbs. and a capacity of 7,000 lbs. at the maximum reach height of 43 ft.
  • Spacious, enhanced-visibility cab and comfortable operator environment
  • Feature pilot-operated joystick controls, a wrap-around dashboard and easy-to-read gauges
  • Full range of common JLG family attachments


JLG Industries, Inc.

Motor Grader Video Series


The Motor Grader Video Series is a series of job-specific DVDs devoted to safe and efficient motor grader operation.

  • Developed with the input of professional motor grader operators
  • Each includes a brief machine introduction and practical view of the pre-use inspection and the many unique features of motor graders
  • Video titles include New Construction, Road Maintenance, Operating Tips and Snow Plowing


VISTA Training, Inc.

Poseidon II Barges


Poseidon II barges are now available in a 40' x 10' x 5' size.

  • Flexifloat compatible connection system
  • Zinc blocks reduce corrosion
  • Coated with Bio Float rust inhibitor on the interior
  • Spuds and pockets available


Poseidon Barge

Profoscope Rebar Detector & Covermeter


The Profoscope rebar detector and covermeter features a scope-based detection interface that combines rebar proximity indicators with optical and acoustical locating aids to find rebar and measure cover depth and rebar diameter.

  • Symmetrical triangulation of the rebar configuration indicates when the unit is located between two rebars or directly on top of one
  • Small, light, cordless, ergonomic design enables one-handed operation
  • Large graphic LCD display offers a language-independent menu and selectable backlight



RoadHog Milling Attachments


The updated self-powered RoadHog milling attachments for loader-backhoes are powered by 76-hp John Deere PowerTech turbocharged, four-cylinder, Tier III-compliant diesel engines.

  • Available in 30- and 40-in. cutting widths with an 8-in. cutting depth capability
  • Cutting drum can be sideshifted hydraulically to the right side for cutting shoulders or against curbs
  • Features hydraulic tilt (slope) control for matching grade or making bevel cuts
  • Wireless remote controller activates engine functions, hydraulic tilt, depth and sideshift
  • Attaches in place of the bucket via pin-on style or quick-attach style brackets


Zanetis Power Attachments

Secure Fuel System


The Secure Fuel System is designed for real-time tracking of dispensed fuel to prevent theft or unauthorized use.

  • Easily installs on any fuel, lube or pickup truck
  • Can also be installed on fuel stations or remote bulk tanks


OEM Data Delivery

Stainless Steel Electric Submersibles


These fully self-priming, stainless steel electric submersible pumps meet the demands of applications requiring corrosion resistance and durability.

  • Flows from a few to several hundred gallons per minute, with head conditions to several hundred feet
  • Standard stainless steel motor housings, impellers and impeller casing
  • Available from 120-volt single phase to 460-volt three-phase
  • Control panels with float switch capability for automatic start/stop conditions


Griffin Pump & Equipment

SUI Grizzly Screens


SUI Grizzly Screens are available in Rip-Rap King Grizzly, Light Construction Grizzly, Landscape Pro Grizzly in Fixed Top, Adjustable Top, Flip Top and Spring Top models.

  • For use with skid steers to full-size loaders to separate jobsite soil of any size debris
  • Available from 1-in. minus to 12-in. minus
  • Rugged, durable and solidly built
  • Suitable for high-production, demanding jobs from hardcore rip-rap to landscape applications


SUI Manufacturing, Inc. (Steel Unlimited)

Super High Flow Kit


A Super High Flow Kit is available for Case 440, 450 and 465 Series III compact track loaders.

  • 34 gpm at 4,500 psi (89 hhp) delivers 33% more hydraulic horsepower (89 hhp)
  • 16 gpm at 4,500 psi in reverse
  • Separate 8-gpm auxiliary for attachment control
  • Additional cooler keeps temperature down
  • Factory ordered and installed


Burlington Installation Corp. BIC

Telestick Boom Extension


The Telestick boom extension is designed with a Quick Change feature to efficiently switch attachments.

  • Can increase the reach and range of Gradall Series 3 excavators to as much as 50 ft. 2 in. on the largest models
  • Can be equipped with buckets, blades, grapples and more
  • Incorporates adjustable rod eyes on the dead link and adjusting capabilities to provide proper contact of the stroke limiters
  • Can be installed in less than 30 minutes using the standard boom-end bucket adapter and two pins


Gradall Industries, Inc.
