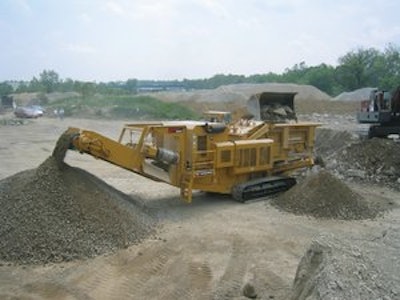

4043T Impact Crusher


The 4043T impact crusher features standard Caterpillar tracks with high-speed travel and a 300-hp Caterpillar C-9 ACERT Tier III diesel engine.

  • 40" x 43" horizontal impact crusher and 43" x 32" feed inlet opening
  • Three-stage crushing utilizes two interchangeable and replaceable anvils and one fixed anvil
  • Fully remote controlled operation
  • Split housing design allows for blockage clearance during operation and ease of maintenance


Screen Machine Industries, Inc.

BR580JG-1 Mobile Jaw Crusher


The BR580JG-1 mobile jaw crusher has an operating weight of 108,000 to 112,440 lbs., and is powered by a 345-flywheel-hp Komatsu SAA6D125E-5 Tier III-certified engine.

  • Vibrating grizzly feeder moves material elliptically to separate and feed it evenly into the KCJ4430 jaw with load-presetting semi-automatic feeder system
  • Fully automatic discharge adjustment system
  • 42-in.-wide, high-speed, large-capacity conveyor belt
  • Includes the latest Komtrax technology (Level 2) and HydrauMind fully hydraulic drive system


Komatsu America Corp.

C50 Model Jaw Crusher


The C50 model heavy-duty, track-mounted, 50-in. jaw crusher features a 50" x 26" single toggle jaw developed in partnership with Telsmith Inc.

  • 300-rpm crusher speed
  • 350-hp Caterpillar Tier III-compliant engine
  • Track chassis or track with wheel bogie
  • Integrated hydraulic folding hopper and hydraulic folding stockpiling conveyors
  • 8.9-cu.-yd. feed hopper
  • 46.5" x 169" grizzly feeder with adjustable speed up to 975 rpm
  • Open chassis design for ease of maintenance


McCloskey International Ltd.

Extec C12+ Mobile Crusher


The C12+ mobile crusher features a standard extended tail conveyor for even greater stockpiling capacity.

  • Diesel hydraulic power via a 350-hp Caterpillar C-9 industrial engine
  • Large vibrating feeder with grizzly and discharge conveyor for fines
  • Hydraulic system automatically coordinates the flow of material from the vibrating feeder to the jaw
  • Fast track system ensures the clear flow of reinforcing bar when concrete is crushed
  • Self propelled by remote control or umbilical control hand set


Sandvik Mining & Construction

Fintec 1080 Cone Crusher


The 1080 track-mounted cone crusher system features a Sandvik 385-hp H3800 crusher, developed with the CSC (cubical shape crushing) technique.

  • 6.5-cu.-yd. hopper capacity and a 7 1/2-in. maximum feed opening
  • Level monitor controls the feed rate to ensure choke feeding of the crusher
  • Semi-automatic setting regulation system optimizes production and tracks liner wear
  • 40-in.-wide hydraulic-folding feed conveyor
  • Hydrostatic crusher drive controlled by a remote radio console


Sandvik Mining & Construction

Hybrid Traxx


The Hybrid Traxx track-mounted impactor plant features diesel electric power for both the impactor and the plant, with hydraulic operation powering the tracks.

  • UltraMax II 4144 next-generation impactor with hydraulically adjustable curtains for precise product control
  • Features a 5/8-in. steel hopper, 42" x 32" feed opening and 25-hp variable speed feeder control
  • 42" x 40 conveyor fixed at a 10-ft. discharge height for direct loading of trucks
  • 325-hp diesel engine
  • Wireless hand-held remote control with a 30-ft. tether backup


Eagle Crusher Co. Inc.

Lokotrack LT106


The Lokotrack LT106 jaw plant is built around the Nordberg C106 jaw crusher, which provides up to 10% more crushing efficiency.

  • 28" x 42" crusher feed opening with a 24-in. maximum feed size
  • 300-hp Caterpillar C9 diesel Tier III-compliant engine
  • User-friendly IC500 process automation system features complete automatic crushing process controls, single-button process startup and advanced fault diagnostics
  • 8- or 12-cu.-yd. feed hopper available
  • Lokotrack LT106S features a single-deck, detachable screen module


Metso Minerals Industries, Inc.

Pegson XH250 Trakpactor


The Pegson XH250 Trakpactor crushes concrete/asphalt rubble, C&D debris and limestone with low to medium hardness.

  • Four blow bar horizontal impactor with mono block upper apron design and 33.4? x 33.4? rotor provides a throughput capacity of up to 250 tph
  • Slow speed, high stroke vibrating grizzly feeder with under-screen and load-sensing control system
  • Incorporates a Caterpillar C-6-6 Tier III engine, heavy-duty I-beam chassis, heavy-duty bolt-on tracks, fixed Hardox hopper and overband magnet
  • Standard product conveyor features hydraulic raise/lower and a maximum 125-in. discharge height




Portable Jaw Crusher Plant


The portable jaw crusher plant is available in a full range of sizes with various crusher brands and diesel or electric power.

  • Chassis frames built with high-strength, wide-flange steel beams
  • Hoppers have 3/4-in. plate wall construction with heavy angle reinforcing
  • Grizzly feeder has hydraulic hydrostatic drive for variable speed control
  • Six independent hydraulic legs provide fast setup and operational support


Grasan Equipment Co., Inc.

QuarryTrax Model TI6060


The QuarryTrax Model TI6060 track-mounted primary impact crushing plant is designed for high-capacity production of up to 800 tph.

  • Model PA6060 primary impact crusher with heavier, solid-type rotor capable of consistently crush 40-in. stone or concrete slabs
  • Hydraulic system provides fingertip control of apron adjustments
  • PLC allows operation in an AUTO mode that automatically returns the apron to preset spacing and track wear parts consumption
  • Trax-Max control system monitors and controls plant operations
  • Hand-held wireless remote maneuvers plant and provides crusher, feeder, engine and conveyor controls from a safe distance


Telsmith, Inc.

V-Slam Impactor


The V-Slam Model VS-88 vertical shaft impactor features innovative housing and rotor designs and an easy access low-profile split swing lid.

  • Optimal hydraulic drive system offers variable mill speeds
  • Size reduction ratio up to 15:1 with speeds up to 12,500 fpm and a capacity range from 5 to 500 tph
  • Equipped with an indexing feed tube and anvil ring and an automatic recirculating lubrication system
  • Easy to replace distributor plates, shoes and other impeller components
