Asphalt & Emulsion Tanks

Here's a showcase of tanks for storing your materials.

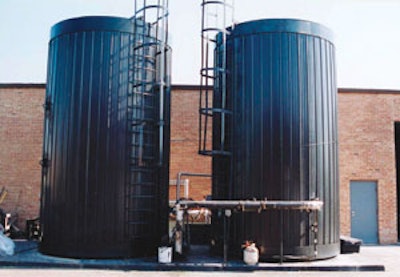

1115919554729 10306628

SealMaster Storage Tanks

SealMaster's heated asphalt storage tanks are designed for paving grade asphalts, roofing asphalts and asphalt emulsion.

  • 1/4-inch plate steel construction
  • 4-inch-thick mineral wool insulation
  • Thermostatically controlled
  • Can be customized

AESCO/Madsen Storage Tanks

AESCO/Madsen manufactures a complete line of stationary, portable and vertical apshalt storage tanks.

  • Capacities range from 10,000 to 30,000 gallons
  • Thoroughly insulated with an aluminum cover
  • Mounted on a rugged structural underframe
  • Engineered to meet contractor's requirements
  • Can be supplied with unitized electric heat, coiled or direct-fired systems
  • Automatic temperature controls, hi-level and low-level shutoffs and optional tank mixers

Heatec Vertical Tanks

Heatec's vertical tanks are insulated 6 inches on the sides, 6 inches on the top and 3 inches on the bottom.

  • Insulation has an R-value of 17 at an asphalt temperature of 300 degrees F
  • High- and low-limit switch inside tank features a three-way control valve with electric actuator; if asphalt temperature falls to a preset level, the agitator will not operate, which prevents the mixer motor from burning up or breaking the shaft or impellers
  • Models are available in capacities ranging from 10,000 to 35,000 gallons

Burke Vertical Tanks

Burke Heating System's vertical tanks offer a smaller footprint than horizontal tanks.

  • Manufactured with a square top much like silos, allowing 30 percent more working area on top of the tank
  • Skids are on tanks to allow the bottoms to be insulated
  • Pre-piped suction and drain to easily empty the tanks when changing liquids

E.D. Etnyre Vertical Tanks

Etnyre vertical tanks are designed for filling smaller street patcher and maintenance-type units.

  • Units offer a 7,000-gallon capacity, gravity discharge and fully automatic electric heat controls
  • Insulated and jacketed
  • Electric-driven emulsion agitation system
  • Optional electric pumping system available

Hotmix Split Asphalt Tank

The HMI 30,000-gallon split asphalt tank includes a mixing package for each side of the split tank.

  • 2,000,000-Btu hot oil heater is mounted on the gooseneck

General Combustion Hy-Way Tanks

Hy-Way asphalt and polymer tanks are designed for complex liquid storage requirements.

  • Vertical, horizontal or portable configurations
  • Capacities from 1,000 to 50,000 gallons
  • Large heat exchange coil surface
  • Serpentine and helical coil designs
  • 4 inches of fiberglass insulation to maintain optimum operating temperature
  • "Hard hat" cap design prevents damage to the tank surface and allows easy access to the coil through a 20-inch, quick-opening manhole with energy vent
  • Safety suction system prevents the liquid level from dropping below the heating coil, yet allows complete emptying of the tank
  • Internal vent and overflow system prevents overfilling and condensing vapors from collecting in the insulation during truck unloading

Reliable Asphalt Products Storage Systems

Reliable Asphalt Products offers a full line of liquid asphalt and emulsion storage systems.

  • 1,000 to 1,000,000-gallon capacities
  • Liquid AC and emulsion systems are fully capable of handling straight AC, PMAC and Superpave mix designs
  • Available in portable, stationary, skid mount and vertical arrangements with options for hot oil heat, electric and direct-fired systems
  • Temperature controllers and optional agitation systems are also available
  • Built UL-approved with the steel components and wrapped with industrial strength insulation and a heavy-duty stucco skin
  • Coil surface for maximum heat transfer
  • Internal and external ladders

ADM Tanks

Asphalt Drum Mixers (ADM) offers several styles of asphalt tanks.

  • Direct-fired units are available in 10,000- to 30,000-gallon capacities at 450 to 600 Btu/hour and come standard with submersible firing tubes and scavenger coils
  • Coiled with hot oil heater units are available in 15,000 to 30,000-gallon capacities and come standard with 1,000,000 Btu/hour heater and serpentine coils
  • Both types include optional portability packages and multi-fuel burners

Meeker HCS Heating Capsule

Meeker Equipment Co. offers the HCS heating capsule system, which is a fully integrated system incorporating normal storage tank features plus the exclusive fuel oil manifold system.

  • Heats reclaimed oils for utilization
  • Unique design provides a reservoir of preheated oil at the designated set point resulting in tighter temperature control
  • Tank is ruggedly constructed with flanged fittings, '-inch steel base and sidewalls
  • Heating capsule with fuel manifold portion can be sold as a new system complete with tank or as a retrofit to existing storage system

Dillman Tanks

Dillman Equipment Inc. manufactures a complete line of liquid AC handling equipment.

  • Stationary, portable, skid mount and vertical configurations
  • 15,000- to 35,000-gallon capacities
  • All steel construction with double welded seams
  • Heavy grade insulation
  • Dent-resistant stainless-steel skin
  • Optional agitation systems for special mix design requirements
  • Factory installed level indicator
  • Top access manhole with OSHA ladders, handrails and walkways

BDM Engineering Tanks

BDM offers stationary or portable asphalt tanks featuring heavy construction.

  • Three types are available: direct fired, coiled or electric
  • Capacities range from 10,000 to 30,000 gallons

PHCo flanged Immersion Heater

Process Heating Co. (PHCo) offers a new heater that is designed for tanks, large vats and reservoirs.

  • Standard 150- or 300-pound flange for mounting
  • Exclusive heating elements allow the elements to be serviced or replaced without draining the tank
  • Low watt density keeps the element sheath temperature low, reducing the chance of coking or heater build-up
  • Flange and heater tubes are made of either mild- or stainless-steel depending on the application
  • Supplied with custom, U.L.-listed control panels integrally mounted and wired to the heaters or without controls
  • Kilowatt ratings up to 1000 kW
  • Watt density up to 200 watts per square inch
  • Immersion length up to 20 feet
