6MCR

World Innovation: MCR Series

Change from Excavator to Skid Steer mode by turning a switch

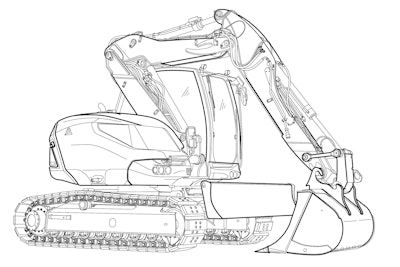

A smart combination of a compact excavator with a compact loader, the MCR range is now available in the 6, 8 and 10-tonne class. Quite simply unique, the 6MCR is a tracked excavator that can travel at speeds of up to 10 km/h, a compact loader with 360° rotation, a construction machine that can switch from excavator mode to skid loader mode in seconds.

OUR VISION:

A SINGLE MACHINE

Thanks to a simple selector-switch, Mecalac patent, the driver can turn his compact excavator into a compact loader and then back again, using the same commands. Loading efficiency is maximized, it is made by the skid bucket supported on the blade which increases the machine's efficiency thanks to the force of the thrust transmitted directly from the chassis to the bucket. The operation is performed more accurately using the control lever. The patented Mecalac cylinder coupling function, allows to synchronize the boom cylinders for perfect movement coordination and precision. It makes driving and handling easy, regardless of whether the operator is a novice or more experienced. And, whether engaged or otherwise, they're yet another powerful feature along for the ride.

FEATURES

Total operating weight 5700 kg (12,600 lb) / 6100 kg (13,500 lb) Overall width 2030 mm (6'8) Tail swing radius 1170 mm (3'10) Turning width 2608 mm (8'6) Travel speed 10 km/h (6.2 mph) Engine power (kW/hp) 55,4 kW (75hp - 74.3 imperial hp)/75 Max. depth - 3300 mm (10'1) Tear-out force / Excavator 2500 daN (5,620 lbf) Break-out force / Excavator 4300 daN (9,666 lbf) + and - with forks + 4500 mm (+14'9) / - 2900 mm (-9'6)
