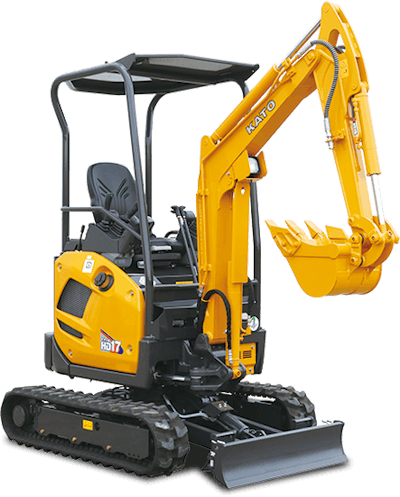

HD17V5 GENERAL SPECIFICATIONS
Engine Output 10.5kW/2,300min-1
Machine Weight 1,780kg
Bucket Capacity 0.024-0.055m3
Maximum Digging Depth 2,190mm
MINI EXCAVATOR
www.kato-works.co.jp
- DIMENSION (mm)
- WORKING RANGE (mm) [Standard/Long arm] - SHOE Type Rubber Steel 30 31 [Max./Min.]1,300 990 230Shoe widthmm Overall widthmm Ground pressurekPa
- SPECIFICATION AND COMBINATION OF BUCKET
General purpose -Light work Unusable Type Bucket capacityJIS M3 Bucket widthmm Number of bucket teeth Standard arm Long arm without side cutter with side cutter Bucket 0.024 250 300 2 0.033 300 350 3 0.044 400 450 3 0.055 450 500 3 -¡ Technical Specification
- ENGINE
Model Rated output Max. torque ...... ...... ...... YANMAR 3TNV74 10.5kW/2,300min-1 51.8N-m/1,800min-1
- DIMENSIONS
Overall length Overall height Overall width Max. ground clearance Tail slewing radius Crawler length Shoe width ...... ...... ...... ...... ...... ...... ...... 3,450mm 2,380mm 1,300mmMin.990mm 170mm 650mm 1,570mm 230mm
- TRAVEL&SWING SYSTEM
Travel speed Max. swing speed Grade ability Ground pressure ...... ...... ...... ...... 2.1/4.0km/h 8.5min-1 58
30° 30kPa(0.30kgf/cm2)
- DIGGING FORCE
Bucket digging force Arm digging force ...... ...... 16.4kN 9.6kN
- CAPACITY
Hydraulic tank Fuel tank ...... ...... 16Lreference capacity 22L
- HYDRAULIC SYSTEM
Pumps Swing motor Travel motor Control valves Max. pressure/ setting ...... ...... ...... ...... ...... Double variable piston pump and gear pump Orbit slewing motor with swing brake Variable displacement plunger motor 9 section multiple control valves 20.6MPa210kgk/cm2 14801550 2570278017302040 38204080 21902440 36103830 Website YouTube Instagram Bucket capacity0.024m3 0.055m3»Standard 0.044m3 Operating weight1,780kgModelHD17V5 zero tail swing 1 2 Unavailable to select the 2nd aux piping alone Cannot be installed at the same time
- STANDARD AND OPTIONAL EQUIPMENTS
ROPS canopy TOPS canopy Safety lock lever Retractable seat-belt Boom working light LED working light for 4-post canopy Automatic parking brake (slewing table) Traveling Alarm Safety equipment 12V electric supply port Cup holder Multiple one-key Analogue monitor Seat suspension Operation seat 1st aux. piping for attachment (W/A selectable) 2nd aux. piping for attachment 1 Aux. piping proportional control Stop valve for 1st aux piping port Pattern change valve (AB,AF) Relief valve for spare port(13.7MPa) 2 Relief valve for spare port(17.2MPa) 2 Piping and others Bucket Arm Dozer blade Working equipment 0.024m3 0.033m3 0.044m3 0.055m3 STD Arm Long Arm+250mm Reinforced type Additional dozer blade Additional counterweight(+100kg) Canopy 4-post canopy (ROPS) 2-post canopy (TOPS) Maintenance Double element air cleaner Cartridge type return filter Fuel filter Castle nut for adjustment (boom tip) System Variable gauge undercarriage Standard Optional Shoe Traveling equipment 230mm rubber shoe 230mm steel shoe 230mm steel shoe +pads Traveling frame undercover 705 455 450 55° 70° 335285 R650 230 1570 3450 1160 2380 300 430 650 990 Max 1300 170 Min 990 0988632EN Before using this machine, read the instruction manual precautions thoroughly to operate it correctly Specifications are subject to change without notice for improvement purposes Photographs shown in the catalog were taken for publication and therefore may differ in some cases from actual objects When operating the mini excavator, wear clothing and equipment in accordance to local legal and safety regulations.
Wide openable engine cover
The fully openable engine cover provides great access to various components. Daily maintenance such as air filter cleaning, engine oil replacement become easier.
Engine start system & safety lock system
The engine is turned on when that lever is in the neutral position. Auto-parking brake is activated when the lock lever is raised. (Including dozer blade and swing) It offers high operating safety and prevents unexpected movements. 12V electric supply port Cup holder ROPS compliant 4-post canopy 4-post canopy with a retractable seat belt is available as standard feature. Safety of operator has significantly improved. (Fasten your seat belt when you operate)
Comfortable operator's station
The operator position is optimized and provides the best comfortability thanks to foot space being increased by more than 10% in comparison to previous model. Travels smoothly in confined spaces This compact machine fits various job sites Extendable undercarriage This undercarriage design is efficient for transportation and traveling in confined spaces ensuring compactness and high stability.
Retractable dozer
