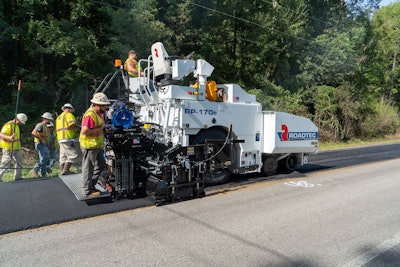

ROADTEC RP-170 HIGHWAY CLASS ASPHALT PAVER
OVERVIEW
THE RP-170 IS AN 8 FOOT (2.5M) WIDE RUBBER-TIRE ASPHALT PAVER WITH A COMPACT WHEELBASE FOR GREATER MANEUVERABILITY WITHOUT SACRIFICED PERFORMANCE.
The RP-170 contains our exclusive anti-segregation design which includes a wide feed tunnel and large augers. Operator stations hydraulically swing out, allowing the operator to see down the side of the machine. Controls with ergonomic design of switch placements are on the armrest for operator comfort even through long shifts.
SPECIFICATIONS
Engine Specifications
Engine MFG CumminsModel QSB 6.7Max Power 173 hp @ 2,200 rpmNumber of Cylinders 6Electrical System 24v
Shipping Length (Tractor Only) 16' 3Shipping Length With Rear Mount Screed 22' 5Shipping Width 8' 10Shipping Height 10' 1/4Tractor Operating Width 10' 5Wheelbase 6' 4Weight of (Tractor Only) 29,280 lbsWeight with S-8 Screed 34,580 lbsWeight with EZ-IV-8 Screed 35,630 lbs
Service Capacities Specifications
Fuel Tank Capacity 81 galHydraulic Tank 66 galCooling System 8.75 galDEF Tank Capacity 5 gal
Drive Specifications
Final Drive 2 speedNumber of Drive Pumps 2Number of Drive Motors 2Paving Speed 0-300 fpmTravel Speed 0-10 mphRear tire size 16.00-24Front tire size 12 x 22Steering Steering WheelControls movement Hydraulic swingSuspension Rubber TireFront Bogies Balanced
Feed System Specifications
Hopper Width 10 5Hopper Capacity 11.5 tonsFeed Control Sonic and Flow GatesAuger Diameter 16Distance Between Augers and Back Wall 1.5Minimum Auger Height 2Hydraulic Tunnel Extensions Optional
