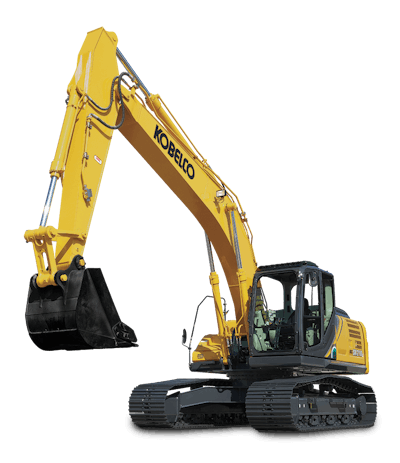

SK210LC-10
Engine Power - 160 hp (119 kW)
Operating Weight - 49,400 lbs (22,400 kg)
KOBELCO'S new Generation 10 machines bring increased power and better fuel economy to provide greater efficiency to any project. The KOBELCO SK210LC-10 is more durable than ever and able to withstand the rigors of the toughest job sites. The revolutionary technology improves fuel economy by up to 6% in ECO-mode and up to 10% in S-mode. That is real savings on operating expenses you can count.
The highly efficient hydraulic system can improve job productivity by up to 7% increased digging volume per hour. And with power boost, you can get up to 10% more power with maximum bucket digging force of up to 38,500 lbs. That translates to more productivity right from the start. Download the brochure to see all of the new features on this new Generation 10 machine.
Overall Length 31' 9 (9,670 mm) Overall Height (to top of boom) 10' 5 (3,170 mm) Overall Width 10' 9 (3,280 mm) Ground Clearance of Rear End 3' 6 (1,060 mm) Ground Clearance 18 (450 mm) Tail Swing Radius 9' 7 (2,910 mm) Distance From Center of Swing To Rear End 9' 6 (2,900 mm) Tumbler Distance 12' (3,660 mm) Track Gauge 7' 10 (2,390 mm) Shoe Width 2' 8 (800 mm)
PERFORMANCE
Travel Speed 3.7 mph (6 kph) / 2.2 mph (3.6 kph) Drawbar Pulling Force 51,500 lbf (229 kN)
WEIGHT
Operating Weight 49,400 lbs (22,400 kg)
ENGINE
Model Hino J05E UM-KSSC Power Output 166 hp (124 kW) 160 hp (119 kW) Max. Torque 472 lbf (640 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 84.5 gallons (US) (320 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear
Max. Digging Reach 32' 6 (9,900 mm) Max. Digging Reach At Ground Level 31' 11 (9,730 mm) Max. Digging Depth 22' (6,700 mm) Max. Digging Height 31' 11 (9,720 mm) Max. Dumping Clearance 22' 8 (6,910 mm) Max. Vertical Wall Digging Depth 20' (6,100 mm) Min. Swing Radius 11' 8 (3,550 mm) Digging Depth For 8 Feet Flat Bottom 21' 5 (6,520 mm)
Bucket Digging Force 35,300 lbf (157 kN) Arm Crowding Force 25,200 lbf (112 kN)
