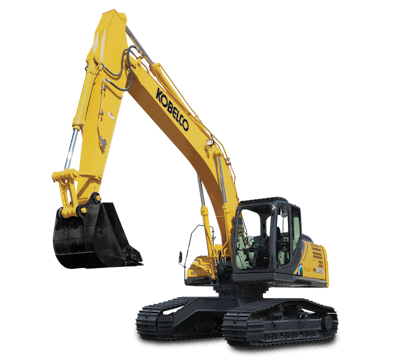

SK210LC-10 H&W
Engine Power - 160 hp (119 kW)
Operating Weight - 56,700 lbs (25,700 kg)
With their wider stance and increased clearance, KOBELCO High & Wide excavators can tackle jobs usually reserved for bigger machines - including forestry work, craning large pipe and loading out trucks. The SK210LC-10 H&W is designed to be stable under the heaviest of loads. Plus, it offers all the standard features you expect from a KOBELCO, including independent travel, swing flashers and premier operator comforts.
Overall Length 31' 3 (9,530 mm) Overall Height (to top of boom) 11' 3 (3,420 mm) Overall Width 11' (3,340 mm) Ground Clearance of Rear End 4' 8 (1,410 mm) Ground Clearance 30 (775 mm) Tail Swing Radius 9' 7 (2,910 mm) Distance From Center of Swing To Rear End 9' 6 (2,900 mm) Tumbler Distance 12' 1 (3,690 mm) Track Gauge 8' 8 (2,640 mm) Shoe Width 2' 4 (700 mm) Overall Width of Upperstructure 9' 4 (2,850 mm)
PERFORMANCE
Travel Speed 3.4 mph (5.5 kph) / 2.1 mph (3.4 kph) Drawbar Pulling Force 51,300 lbf (228 kN)
WEIGHT
Operating Weight 56,700 lbs (25,700 kg)
ENGINE
Model Hino J05E TM-KSSC Power Output 166 hp (124 kW) 160 hp (119 kW) Max. Torque 472 lbf (640 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 84.5 gallons (US) (320 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear
Max. Digging Reach 32' 6 (9,900 mm) Max. Digging Reach At Ground Level 31' 8 (9,660 mm) Max. Digging Depth 20' 10 (6,360 mm) Max. Digging Height 33' (10,070 mm) Max. Dumping Clearance 23' 9 (7,250 mm) Max. Vertical Wall Digging Depth 18' 11 (5,760 mm) Min. Swing Radius 11' 8 (3,550 mm) Digging Depth For 8 Feet Flat Bottom 20' 3 (6,180 mm)
Bucket Digging Force 35,300 lbf (157 kN) Arm Crowding Force 25,200 lbf (112 kN)
