MINI EXCAVATORS

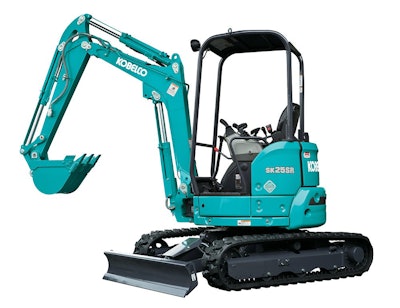

SK25SR-6E
Top-class max. digging reach and max. digging depth for the 2.5 tonne class. Max. Arm Crowding and Bucket Digging Force: 12.6kN | 23.1kN* Easy hydraulic piping for quick hitch fitted as standard. Like all Kobelco mini excavators, the SK25SR comes with a standard 4 year/4,000 hour Full Machine Warranty.he SK25SR combines a compact design with efficiency, manoeuvrability and durability to ensure a long working life. Light enough to be transported on a trailer even with additional attachments. Built to stand the test of time with robust durability engineered in, and innovative spring-steel guards on all cylinder rods.
The combination of side-ditch digging swing boom function and zero tailswing radius makes the SK25SR easy to dig next to walls with a compact operating footprint. Reliable swing power, faster working speed, powerful digging and a wide working range.
The SK25SR is as comfortable and productive as it is practical. The cabin features a reclining operator's seat, plenty of foot room and wide operational space for a comfortable working environment. The backlit liquid crystal monitor is provided as standard, providing easy visibility of all key machine operation data. The four-post canopy meets ROPS and FOPS standards for greater operator safety.
SPECIFICATIONS
Transport Dimensions
Length, Width & Height 4.12 x 1.5 x 2.49 m
Operating Weight 2,765 kg
Refilling Capacities
Fuel Tank 30.5 L Hydraulic Oil Tank 25 (39) L
Working Range
Max. Digging Depth 2.79 m Max. Digging Reach 4.75 m
Engine
Rated Power Output 15.2 kW Rated Torque 63.9 Nm
Breakout Force
Bucket Digging Force 23.1 kN Arm Crowding Force 12.6 kN
Hydraulic System
Max. Pump Flow 2 x 30.0 + 23.1 L/min Standard Auxiliary N&B Piping
