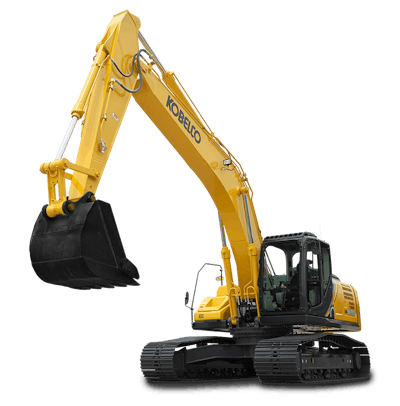

SK260LC-10
Engine Power - 178 hp (133 kW)
Operating Weight - 59,300 lbs (26,900 kg)
e SK260LC-10 is one of our new Generation 10 machines that has increased power and better fuel economy you can see going right to your bottom line.
The KOBELCO SK260LC-10 is more durable than ever and able to withstand the rigors of the toughest job sites. The revolutionary technology improves fuel economy by up to 9% in ECO-mode and up to 10% in S-mode. That is real savings on operating expenses you can count.
The highly efficient hydraulic system can improve job productivity by up to 5% increased digging volume per hour. And, with power boost you can get up to 10% more power with maximum bucket digging force of up to 42,000 lbs. That translates to more productivity right from the start. Download the brochure to see all of the new features on this new Generation 10 machine.
Overall Height (to top of boom) 10' 10 (3,300 mm) Overall Width 11' 5 (3,490 mm) Ground Clearance of Rear End 3' 7 (1,090 mm) Ground Clearance 18 (460 mm) Tail Swing Radius 10' 2 (3,100 mm) Distance From Center of Swing To Rear End 10' 1 (3,070 mm) Tumbler Distance 12' 8 (3,850 mm) Track Gauge 8' 6 (2,590 mm) Shoe Width 2' 8 (800 mm) Overall Width of Upperstructure 10' 3 (3,120 mm)
PERFORMANCE
Travel Speed 3.7 mph (5.8 kph) / 2.2 mph (3.6 kph) Drawbar Pulling Force 55,100 lbf (245 kN)
WEIGHT
Operating Weight 59,300 lbs (26,900 kg)
ENGINE
Model Hino J05E UN-KSSD Power Output 185 hp (138 kW) 178 hp (133 kW) Max. Torque 469 lbf (636 Nm) Displacement 312.6 in³ (5.123 ltr) Fuel Tank 106.5 gallons (US) (403 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 33' 10 (10,300 mm) Max. Digging Reach At Ground Level 33' 3 (10,140 mm) Max. Digging Depth 23' (7,000 mm) Max. Digging Height 32' 1 (9,790 mm) Max. Dumping Clearance 22' 7 (6,880 mm) Max. Vertical Wall Digging Depth 20' 2 (6,150 mm) Min. Swing Radius 12' 10 (3,910 mm) Digging Depth For 8 Feet Flat Bottom 22' 5 (6,820 mm)
Bucket Digging Force 42,000 lbf (187 kN) Arm Crowding Force 30,100 lbf (134 kN)
