SK300LC-10
Engine Power - 252 hp (188 kW)
Operating Weight - 68,800 lbs (31,200 kg)

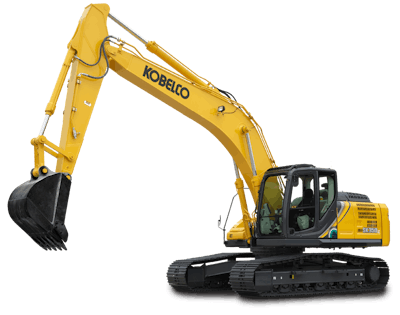

The KOBELCO SK300LC-10 is one of our new Generation 10 machines packed with innovative features to get the job done with efficiency and increased fuel economy. The SK300LC-10 is more durable than ever and offers next-generation productivity to meet the need for lower life-cycle operating costs and to exceed expectations of operators.
Overall Length 35' 4 (10,770 mm) Overall Height (to top of boom) 11' 3 (3,430 mm) Overall Width 11' 1 (3,390 mm) Ground Clearance of Rear End 3' 11 (1,200 mm) Ground Clearance 20 (510 mm) Tail Swing Radius 10' 10 (3,300 mm) Distance From Center of Swing To Rear End 10' 9 (3,270 mm) Tumbler Distance 13' 1 (4,000 mm) Track Gauge 8' 6 (2,590 mm) Shoe Width 2' 8 (800 mm) Overall Width of Upperstructure 10' 3 (3,120 mm)
Max. Digging Reach 35' 8 (10,870 mm) Max. Digging Reach At Ground Level 35' (10,680 mm) Max. Digging Depth 23' 7 (7,200 mm) Max. Digging Height 32' 10 (10,010 mm) Max. Dumping Clearance 23' 4 (7,110 mm) Max. Vertical Wall Digging Depth 20' 5 (6,230 mm) Min. Swing Radius 14' 6 (4,430 mm) Digging Depth For 8 Feet Flat Bottom 23' 1 (7,040 mm)
PERFORMANCE
Travel Speed 3.2 mph (5.2 kph) / 1.9 mph (3.1 kph) Drawbar Pulling Force 62,900 lbf (280 kN)
WEIGHT
Operating Weight 68,800 lbs (31,200 kg)
ENGINE
Model Hino J08E VV-KSDP Power Output 268 hp (200 kW) 252 hp (188 kW) Max. Torque 729 lbf (989 Nm) Displacement 468.9 in³ (7.684 ltr) Fuel Tank 132.9 gallons (US) (503 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Bucket Digging Force 46,800 lbf (208 kN) Arm Crowding Force 31,200 lbf (139 kN)
