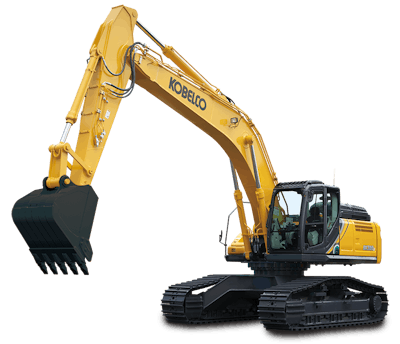

SK300LC-10 H&W
Engine Power - 252 hp (188 kW)
Operating Weight - 73,600 lbs (33,400 kg)
With their wider stance and increased clearance, KOBELCO High & Wide excavators can tackle jobs usually reserved for bigger machines - including forestry work, craning large pipe and loading out trucks. The SK300LC-10 H&W features an overall width of 12', making it stable under the heaviest of loads. Plus, it offers all the standard features you expect from a KOBELCO, including independent travel, swing flashers and premier operator comforts.
Overall Length 34' 10 (10,620 mm) Overall Height (to top of boom) 11' 7 (3,530 mm) Overall Width 12' (3,650 mm) Ground Clearance of Rear End 4' 11 (1,510 mm) Ground Clearance 31 (785 mm) Tail Swing Radius 10' 10 (3,300 mm) Distance From Center of Swing To Rear End 10' 9 (3,270 mm) Tumbler Distance 13' 3 (4,050 mm) Track Gauge 8' 6 (2,950 mm) Shoe Width 2' 4 (700 mm) Overall Width of Upperstructure 10' 3 (3,120 mm)
PERFORMANCE
Travel Speed 2.8 mph (4.5 kph) / 1.6 mph (2.6 kph) Drawbar Pulling Force 74,200 lbf (330 kN)
WEIGHT
Operating Weight 73,600 lbs (33,400 kg)
ENGINE
Model Hino J08E VV-KSDP Power Output 268 hp (200 kW) 252 hp (188 kW) Max. Torque 729 lbf (989 Nm) Displacement 468.9 in³ (7.684 ltr) Fuel Tank 132.9 gallons (US) (503 ltr)
HYDRAULIC SYSTEM
Pump 2 Variable axial piston + Gear Max. Digging Reach 35' 8 (10,870 mm) Max. Digging Reach At Ground Level 34' 10 (10,610 mm) Max. Digging Depth 22' 7 (6,890 mm) Max. Digging Height 33' 10 (10,320 mm) Max. Dumping Clearance 24' 4 (7,420 mm) Max. Vertical Wall Digging Depth 19' 5 (5,910 mm) Min. Swing Radius 14' 6 (4,430 mm) Digging Depth For 8 Feet Flat Bottom 22' 1 (6,730 mm) Bucket Digging Force 46,800 lbf (208 kN) Arm Crowding Force 31,200 lbf (139 kN)
