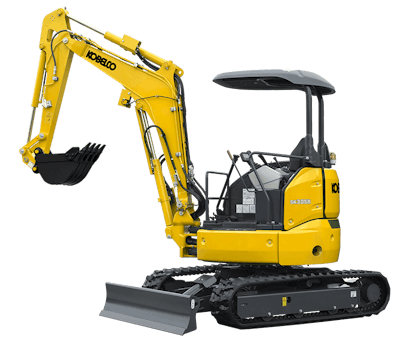

SK30SR-6E
Engine Power - 23.1 hp (17.2 kW)
Operating Weight - 7,320 lbs (3,320 kg)
The SK30SR-6E packs full size performance into a compact package. A standard LCD display puts vital information like operating hours, fuel consumption and water temperature right in front of you where you need it. And all start up checks can be done at ground level for ease of access. Plus, zero tail overhang allows for excellent handling in confined spaces while a simple design makes routine maintenance fast and easy to undertake.
Overall Length 17' 11 (5,460 mm) Overall Height (to top of boom) 8' 3 (2,510 mm) Overall Width 5' 1 (1,550 mm) Overall Height (to top of cab) 8' 3 (2,510 mm) Ground Clearance of Rear End 1' 10 (570 mm) Tail Swing Radius 2' 7 (775 mm) Distance From Center of Swing To Rear End 2' 7 (775 mm) Tumbler Distance 5' 7 (1,700 mm) Track Gauge 4' 1 (1,250 mm) Shoe Width 11 (300 mm) Overall Width of Upperstructure 5' (1,530 mm)
PERFORMANCE
Travel Speed 2.7 mph (4.4 kph) / 1.6 mph (2.5 kph) Drawbar Pulling Force 8,630 lbf (38.4 kN)
WEIGHT
Operating Weight 7,320 lbs (3,320 kg) ENGINE Model Yanmar 3 TNV 88F - E Power Output 24.4 hp (18.2 kW) 23.1 hp (17.2 kW) Max. Torque 60 lbf (81.7 Nm) Displacement 100 in³ (1.642 ltr)
Max. Digging Reach 17' 1 (5,200 mm) Max. Digging Reach At Ground Level 16' 6 (5,040 mm) Max. Digging Depth 9' 2 (2,800 mm) Max. Digging Height 15' 9 (4,800 mm) Max. Dumping Clearance 12' 6 (3,820 mm) Max. Vertical Wall Digging Depth 7' 9 (2,360 mm) Min. Swing Radius 7' 7 (2,300 mm)
At KOBELCO, we build excavators with features you won't find anywhere else. Features that let you power through the toughest jobs, get more done in less time, balance performance with efficiency and stay safe while you do it all. Discover how we're truly built like no other.
BUILT FOR POWER
We know what it's like to sit in the operator's seat when you hit something solid. The power boost button on most excavators can deliver the extra force you need to break through, but only in short bursts.
That's why we designed the power boost function in KOBELCO excavators to have no time limit. You'll never be left demanding power your machine just can't deliver. Untimed power boost comes standard in all KOBELCO conventional excavators - from the SK210LC on up. It's controlled directly from the cab, so the power you need is always right there at your fingertips when you need it. Just don't let it all go to your head.
BUILT FOR SAFETY
It's pretty much impossible to avoid what you can't see. That's why we lowered the rear hood of our machines to help you see out the back and removed cab supports to put a single window on the right. From the operator's chair of a KOBELCO excavator, you get almost a 360-degree view of the job site. And that level of visibility might just let you see the end of the job sooner.
KOBELCO excavators also come standard with a rear camera and rear working lights to help you keep an eye on what's happening behind the machine. Plus, swing flashers let others know when to stay out of your way.
UILT TO MULTITASK
When it comes to complicated tasks, KOBELCO excavators are complete pros. Our exclusive independent travel feature allows the machine to move, lift and swing simultaneously without experiencing any loss of power.
Instead of relying on multiple machines to maneuver pipe into a trench, you can use a single KOBELCO excavator to safely and precisely position each segment into place. And when carrying other heavy loads, you'll have enough power going to the right places to maintain stability.
BUILT FOR EFFICIENCY
It's simple math: extra power often comes at the cost of extra fuel consumption. With KOBELCO excavators, you don't have to sacrifice either. You get best-in-class fuel economy every time you fire up the engine - no matter how tough the job. Three operating modes let operators dial in the perfect balance of fuel economy and jobsite productivity to suit the needs of the day. Use H-mode for heavy-duty operations, S-mode for standard jobs and the ultra-efficient ECO-mode when conserving fuel is top priority.
Generation 10 machines take that efficiency even further. They average a 7% increase in work volume per hour while providing up to a 10% increase in fuel efficiency in S-mode and a further 6% in ECO-mode.
