Skid Steer Products November 2009

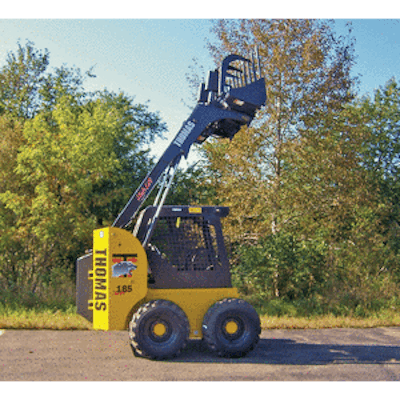

185 Skid-steer Loader



The 7,200-lb. 185 skid-steer loader features a high-lift bucket height of over 11 ft. and a dump height of over 9 ft.

• Capable of lifting 1,850 lbs. and delivers over 2 tons of breakout force
• 59-hp four-cylinder Tier III engine
• Travel speed of nearly 8 mph
• Features an easy-to-service universal joint, 100-chain-drive, sound suppression system kit around the engine, fully lined cab, hand controls and self-level valve control
• Range of attachments and options available



Thomas Equipment

2056 Skid-steer Loader



The 2056 skid-steer loader offers a 1,900-lb. standard rated operating capacity or 2,050 lbs. with optional counterweight.

• 62-hp Deutz TD2009 Series Tier III-certified turbo-diesel engine
• 120-in. standard lift height
• 62-in. standard chassis width or 59.7-in. width (without bucket) with optional offset wheel/tire package
• Joystick controls on movable towers
• "Open-view" lift arm design for ease of entry and exit and an enhanced front view of the bucket and attachment



Mustang Mfg. Co., Inc.

313 and 315 Skid Steers



The 45-hp 313 and 315 radial-lift skid steers feature the same unified design as other 300 Series models, as well as optimum stability, visibility and serviceability.

• Operating capacities of 1,300 and 1,500 lbs.
• Bucket breakout force of 3,300 lbs.
• 59 in. wide for confined spaces (56-in. width optional)
• 10" x 16.5" tires for traction and flotation (7" x 15" tires optional)
• Heavy-duty drive chains never need adjusting
• 360° visibility



John Deere Construction and Forestry Division

400 Series Skid Steers



The 400 Series includes the 45-hp 430 Plus, 47-hp 440 Plus, 69.9-hp 450 Plus, 69.9-hp 460 Plus and 75-hp 470 Plus models.

• 1,505- to 2,500-lb. rated operating capacities
• 3,139- to 4,678-lb. bucket breakout force
• Cummins or Yanmar engines
• Ergonomically designed cab with all-around visibility and hydraulic joystick controls
• Fully protected quick-attach with hydraulic lines and fittings protected inside the boom arms



Doosan Infracore America Corp.

M-Series Skid Steers



The 7,707-lb. S630 radius lift path and 8,327-lb. S650 vertical lift path skid-steer loaders offer rated operating capacities of 2,180 and 2,690 lbs.

• 74-hp Interim Tier IV engine
• 23-gpm standard auxiliary hydraulic flow at 3,500 psi with optional 30.5-gpm high flow
• 15% to 20% increase in tractive effort
• 12.3-mph maximum travel speed
• Cab-forward design and larger door and windows for improved visibility
• 10% larger cab size with improved pressurization
• Optional Selectable Joystick Controls, two speed and high-flow hydraulics



Bobcat Co. - Doosan Infracore

Series II Skid-steers/Compact Track Loaders



The five wheeled and three rubber-tracked machines in the Series II line offer an improved cab environment, increased controllability and a new transmission power management system with increased anti-stall capabilities.

• Improved hydraulic capabilities, breakout forces and attachment performance
• 190 and 1110 (190T and 1110T track versions) powered by JCB DieselMax engines
• Redesigned cab with smoother lines and improved visibility
• Single-sided loading arm allows for a full side door for safer entry
• Auxiliary hydraulic controls incorporated into the joystick control levers



JCB Americas

Super Boom Skid Steers



The vertical-lift Super Boom skid-steer loaders are compact, yet powerful machines with fuel-efficient Tier III engines up to 83 net hp.

• Seven models range from 1,350 to 2,800-lb. rated operating capacity
• Dump reach of up to 102.8 in.
• Breakout forces of up to 7,670 lbs.
• Long wheelbase and low center of gravity for optimal stability
• State-of-the-art cooling system with side-by-side oil cooler, radiator and larger capacity fuel tanks
• High-flow hydraulics available on the L170 through L190
• Optional hydraulic mount plate



New Holland Construction - CNH

V270 Vertical Lift Skid Loader



The V270 skid loaders features an 84-hp Yanmar turbo-diesel engine and a rated operating capacity of 2,700 lbs.

• Lift arm design provides extended reach and lift height of over 130 in.
• Equipped with an electronic engine control and a foot throttle
• Options include a pressurized sealed cab with fully adjustable controls, air-ride seat and side-folding restraint bar
• Standard infinitely adjustable proportional auxiliary hydraulic control and Hydraglide Ride Control System



Gehl Company
