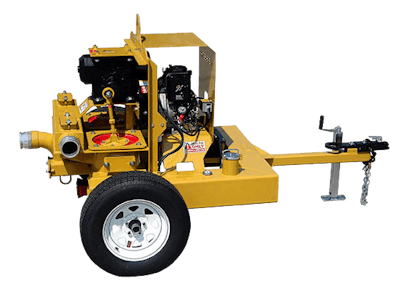

DD4 Double Diaphragm Pump

Myers-Seth Pumps' DD4 double diaphragm pump offers continuous run ability, low fuel consumption, a wide variety of dewatering applications and the ability to handle large solids.

• Pump capacity: 300 gpm at 2,000 rpm
• Solid handling: 3.5 in.
• Maximum suction lift: 28 ft.
• Fuel consumption: .25 gph at 2,000 rpm
• Fuel capacity: 35 gal.
• Maximum operating time: 140 hours at 2,000 rpm
• Maximum working pressure: 30 psi
• 60 3/8 in. high
• 67 in. wide
• 108.8 in. long
• Weight: 1,750 lb.
