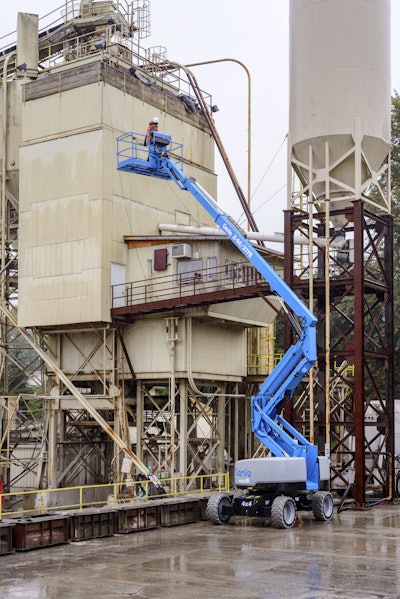

Genie Z-60/37FE Boom Lift Reaches New Heights in 4WD Hybrid Technology

The fuel-electric Z-60/37FE four-wheel-drive articulating boom lift offers 45% gradeability, ground clearance of 1 ft. 1 in. and is capable of traveling 25% faster than typical diesel-powered units.

• Provides 66 ft. of working height, 36 ft. 7 in. of horizontal outreach and 24 ft. 3 in. of up-and-over clearance
• Standard 5-ft. jib offers 70° up and 65° down range of motion and a 160° platform rotation
• FastMast system enables the boom to be moved from full height to below grade and back, shortening ground-to-top lifting time with the use of just one boom control
• 6- or 8-ft. platform offers a 500-lb. capacity, side entry swing gate and front sliding midrail entry as standard
• 8-ft. platform comes with an additional side sliding midrail for a total of three entry points
• Full height driveability and a dual parallelogram linkage design enable operators to vertically track walls by raising or lowering the secondary boom without needing to re-position the machine
• Full-time active oscillating axles increase wheel contact on irregular terrain
• Fully sealed AC motors support drive performance even while submerged under 3 ft. of water
• Narrow footprint and a low 23-in. tailswing allow refined positioning work in confined environments
• 17,100-lb. machine weight and 26-ft. 9-in. stowed length enable easy transport on a standard truck
