Genie Lift Guard Contact Alarm System

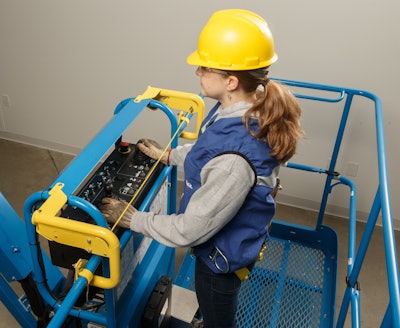

System alerts when an operator disconnects the breakaway cable located near the platform control panel

Genie Lift Guard Contact Alarm 5898fa3d3ed92

The Lift Guard Contact Alarm system is engineered as an electronic secondary guarding system, designed to immediately activate and alert others that the operator may need help.

  • Standard accessory on most new Genie Z (articulated) and S (telescopic) boom lifts and can be retrofit on units dating back to 2003
  • Active whenever the footswitch on the boom is enabled
  • Activation cable fitted above platform control panel disconnects and activates the system when pressure is applied
  • All machine lift and drive functions stopped to prevent additional movement in the platform; motion does not resume without human intervention
  • Alarm sounds and beacons flash, notifying everyone near the lift that the operator may require assistance
  • Resets by simply clicking the activation cable back into place
  • Additional free-movement zone between the cable and control panel may allow for operator mobility once the system is activated
