Manitou Debuts Straight Boom MEWPs for North America

Four models offer platform heights ranging from 64 ft. 9 in. to 84 ft. 6 in. and platform capacities from 500 to 900 lbs. unrestricted

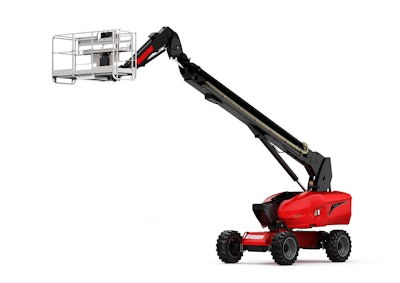

Manitou TJ 85
Manitou TJ 85
Manitou 10835617

Manitou enters the North American straight boom mobile elevating work platform (MEWP) segment with four models - the TJ 65, TJ 65+, TJ 80+ and TJ 85 - offering platform heights ranging from 64 ft. 9 in. to 84 ft. 6 in., platform capacities from 500 to 900 lbs. unrestricted and horizontal outreach from 57 ft. 10 in. to 70 ft. 4 in., depending on model.

  • TJ 65+ and TJ 80+ come standard with a 7-ft. 7-in. by 2-ft. 11-in. platform that can hold up to three people and offers a 900-lb. capacity unrestricted
  • All hydraulic movements are proportionate allowing for smooth operation and precise adjustments in tight areas
  • Feature a front oscillating axle, continuous 360° turret rotation and proportionate hydraulic movements
  • Increase productivity with the ability to perform four movements at the same time
  • Constant rotational control means platform rotation speed varies according to how far the boom is extended
  • Include four-wheel drive and two-wheel, four-wheel and crab steering modes
  • Galvanized floor can be removed and easily replaced rather than replacing the entire platform
  • Provides self-diagnostics at the ground control panel and is fully integrated for fast detection of fault codes
  • Easy Manager provides  the ability to manage unit location, maintenance cycles and service warnings with the telematics system
  • Remote control for transport
  • Powered by a 49.6-hp Kubota Tier 4 diesel engine
  • Meet new ANSI A92 standards
