Genie Z-45 FE Hybrid Boom Lift

Hybrid models combines the power and performance of 4WD diesel machines with the quiet, clean efficiency of 100% electric power

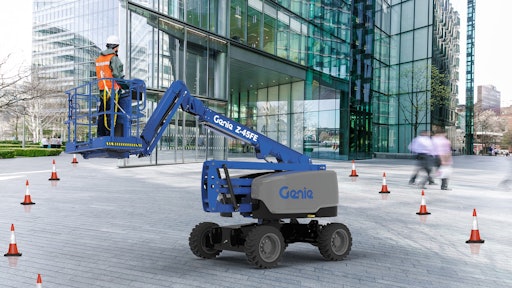

Genie Z 45 Fe Hybrid Boom City Center
Genieblublk 10643871

The Z-45 FE hybrid articulating boom lift combines the power and performance of typical 4WD diesel machines with the quiet, clean efficiency of 100% electric-powered units.

  • 24.8-hp Kubota D1105 Tier 4 Final engine-powered generator maintains the state of charge of the batteries
  • Able to work a full shift on a single battery charge in all-electric mode and offers more than a week of run time on a single tank of diesel in hybrid mode
  • High-efficiency AC drive motors provide similar torque as hydraulic drive motors while using 30% to 40% less energy
  • Full-time 4WD and electronic traction management, active oscillating axles and up to a 4.0-mph drive speed enable quick travel around jobsites
  • Maximum working height of 51 ft. 8 in. with a maximum horizontal outreach of 22 ft. 9 in., maximum up-and-over reach of 24 ft. 7 in. and a 660-lb. maximum lift capacity
  • 5-ft. articulating jib with a 135° vertical rotation provides ability to position workers accurately
  • Provides zero-load field calibration for platform capacity
  • Onboard diagnostics allow for machine setup, calibration and troubleshooting
  • Lightweight (14,500 lbs.) with a compact footprint
  • Z-45 DC with all-electric drive system and Z-45/25 DC with all-electric system also available
