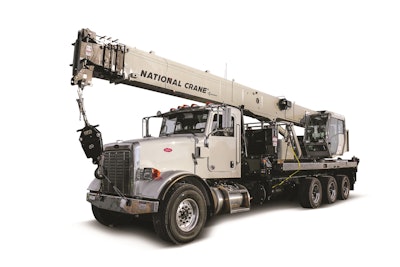

National Crane Dual-rated NBT40-1 Series Boom Trucks with Aerial Lift Package

Aerial lift configuration enables companies to perform both crane lifting and aerial lift projects more efficiently with just one machine

National Crane - a Manitowoc Brand

National Crane dual rated NBT40 1 Series 5899015f30a55

The dual-rated NBT36-1, the NBT40-1 and the NBT45-1 boom trucks are available with an aerial lift configuration that enables companies to perform both crane lifting and aerial lift projects more efficiently with just one machine.

Fully compliant with both ANSI/SAIA A92.2 aerial lift and ASME B30.5 mobile crane industry standards as well as OSHA standards
Option of a two-person, 1,200-lb. maximum capacity, quick-attach yoke platform with wireless radio remote control
Feature operator feedback of operating height and reach, automated function slowdowns when nearing outer edges of working envelope, wind speed and emergency lowering system
161-ft. boom length offers working heights of 169 ft. on main boom and 206 ft. on the jib
142-ft. boom and aerial lift platform floor height of 150 ft. with main boom and 205 ft. with the jib extended
Hydraulic tool circuit in the aerial platform for operating high-pressure tools
Available integrated wind speed sensor provides real-time feedback of wind speed conditions at the operators cab and at the platform controls
Graphical Rated Capacity Limiter (RCL) simplifies setup for both the crane and aerial mode
