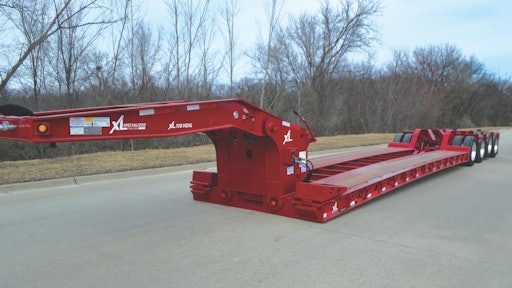

XL 110 Low-Profile Hydraulic Detachable Gooseneck Trailer

Xl Specialized Trailers Xl 110 Low Profile Hdg Trailer
Default Company Logo

The XL 110 Low-Profile Hydraulic Detachable Gooseneck (HDG) trailer has a 110,000-lb. capacity in 12 ft. and features a loaded deck height of only 15 in. and a ground clearance of just 4.5 in.

  • 13-ft. gooseneck offers a 110-in. swing clearance and a relief cutout that provides additional space between the truck and trailer
  • Long neck provides five-position ride height and is easily removable through the use of a wet kit or with a power unit
  • Deck can be leveled as needed with the adjustable wheel area ride height
  • Main deck includes Apitong decking and is built with T-1 flange and 80k webs and 6-in. and 4-in. stubbed junior i-beams on 12-in. centers
  • Deep bucket well in the rear provides an area for an excavator bucket to ride safely without detaching the lower boom section
  • Numerous tie-down points with four flat D-rings inside the front toolbox and bucket wells, seven pairs of bent D-rings along the outer beams, 13 chain drops per side and swing-out outriggers on 24-in. centers
  • Wheel area includes bolt-on heavy-duty wheel covers
  • Work light positioned in the upper deck for added safety during loading and better visibility when monitoring the load at night
  • Third axle airlift can lift up when not needed
  • Prepped for a flip axle, allowing addition of a fourth axle when necessary
