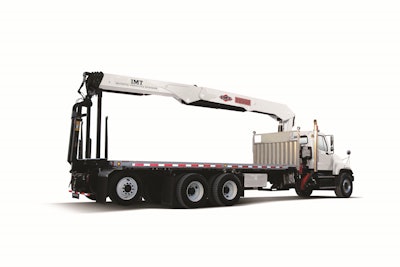

The IMT 28562 hydraulic loader features a standard RCL (rated capacity limiter) 5300 system, which blocks load-increasing functions when full capacity is reached.
- 22-ft. hydraulic out-and-down stabilizer span
- High lift-to-weight ratio
- Standard radio remote control equipped with information center that provides continuous feedback on load moment and operation conditions
- 420-degree rack and pinion rotation
- Rotation system operates in a continuous oil bath to reduce friction and enhance life
- Standard oil cooler to extend hydraulic system longevity
- Counterbalance valve on each cylinder to stop motion in case of a hose failure
- Highest rating in IMT lineup at 161,490 ft.-lbs.
- Max lift capacity: 5,700 lbs.
- Horizontal reach: up to 62 ft. 3 in.
- Max vertical reach: 71 ft. 4 in.
