Titen HD Countersunk Heavy-Duty Screw Anchor

The countersunk head style is for applications that require a flush-mount profile.

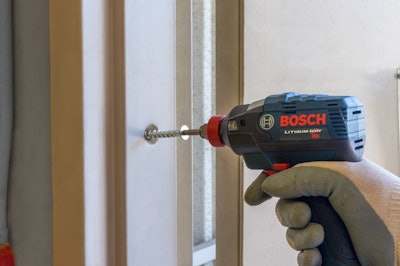

A Thdcs Inst Pho Pho Inst Titen Hd Countersunk Head Door Frame T30 C0
Simpson Strong Tie Logo 10721260

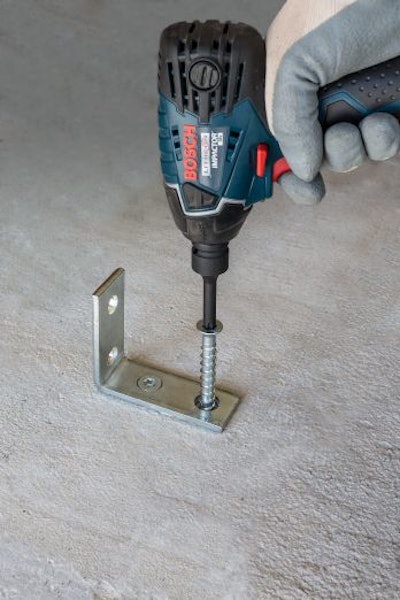

The Titen HD heavy-duty screw anchor family of products is designed for use in dry, interior, noncorrosive environments or temporary outdoor applications. The countersunk head style is for applications that require a flush-mount profile. Countersinking also leaves a cleaner surface appearance for exposed through-set applications. The anchor head’s 6-lobe drive installs easily and is less prone to stripping than traditional recessed heads. A Thdcs Inst Pho Pho Inst Titen Hd Countersunk Head Bracket C0

  • Qualified for static and seismic loading conditions
  • Standard fractional sizes, hole size same as anchor size
  • No special drill bit required—designed to install using standard-sized ANSI tolerance drill bits
  • Removable—ideal for temporary anchoring or applications where fixtures may need to be moved
  • 6-lobe drive reduces driver-bit cam-outs, resulting in easier installation
  • Countersunk head allows for flush-mount applications that are not possible with a hex head
  • Serrated teeth on the tip of the Titen HD screw anchor facilitate cutting and reduce installation torque
  • Available in many of the same lengths as standard THD in 1/4" and 3/8" diameters
