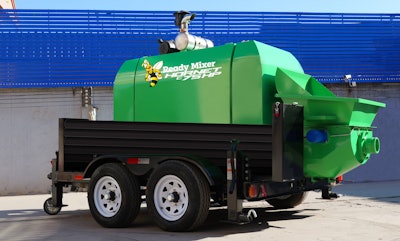

The Hornet C75HP Concrete Pump Trailer redefines efficiency and reliability in concrete pumping. Designed to handle challenging projects with ease, it delivers a smooth and controlled pumping experience, making it an essential tool for large-scale, tight-access and hard-to-reach concrete jobs.
Achieve a pumping capacity of 39 yards per hour, ensuring faster project completion without compromising precision. The included remote control offers seamless operation, allowing you to manage every aspect of the pump trailer with confidence and ease.
The Hornet C75HP is equipped with a fully reversible S-tube concrete valve, enhancing safety, and simplifying cleanouts. Its robust 4-in. diameter piping, provided in 10-ft. increments (totaling 300 ft.), ensures optimal flow for even the most demanding tasks. The package also includes clamps and flexible hosing to meet diverse project requirements.
Capable of pumping up to 1.5-in. aggregate, this trailer is a versatile solution for various concrete mixes. Its durable design is backed by the Cummins Base Engine Warranty and Ready Mixer Limited Structural Warranty.
Specs:
Length: 14.25 ft.
Width: 7.5 ft.
Height: 7.25 ft.
Weight: 7,251 lbs.
Axle Type: Dual
Axle Capacity Rating: 8,800 lbs.
Tires: ST195/75 R17.5
Brakes: Electric
Outrigger Legs: Manual Standard
Remote Control: Yes
Concrete Output: 39 yards per hour
Maximum Aggregate Size: 1.5 in.
Concrete Valve Type: S Tube
Delivery Cylinders: 5.5 in.
Delivery Pressure: 290 psi
Stroke: 33 in.
Stroke/Min: 32.5
Hopper Capacity: 10 cu. ft.
Outlet Diameter: 5 in.
Hydraulic System: Open Loop
Hydraulic Tank Capacity: 44 gal.
Engine Type: Diesel Tier 4 F Cummins QSF2. 8FR99295
Engine Power : 75 hp
Fuel Tank: 21 gal.
Key Features of the Hornet C75HP Concrete Pump Trailer
Pumping Capacity: 39 yards per hour
Maximum Aggregate Size: 1.5 in.
Engine: Cummins QSF2.8FR99295 with 75 hp output
Piping: 4-in. diameter, 10-ft. increments (300 ft. total)
Additional Components: Pipe clamps and flexible hosing included
Hopper Capacity: 10 cu. ft.
Fuel Tank: 21-gal. capacity
Operation: Remote-controlled for precision and safety
Stability: Manual standard outrigger legs
Maintenance: Fully reversible S-tube valve for quick cleanouts
Warranty: 2-year (2,000 hours) Cummins Base Engine Warranty and 1-year Ready Mixer Limited Structural Warranty
