Liebherr Crane Planner 2.0

Integrated planning software helps save time and money and ensure that safety standards are taking into account for challenging heavy lifts

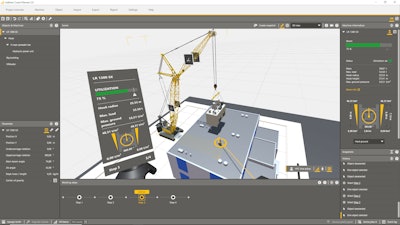

Liebherr Crane Planner 300dpi

Available for the crawler crane range LR 1100 to LR 1300, Crane Planner 2.0 provides the ability to supply infinite configurations of cranes in a multitude of positions.

  • Combines highly detailed, interactive 3D models with relevant planning data based on the machine’s load moment limitation (LML)
  • Any change in the crane’s geometry instantly triggers a new calculation of the entire situation
  • Displays a warning should it recognize potential collisions between the crane, load and surrounding area or non-compliance with safety distances
  • Typical measurements such as lifting height or radius can be activated and user-specific measurements can be defined accordingly
  • “Quick-Config” enables a planner to quickly reconfigure various dimensions of the crane during the planning process and have the system recalculate the entire lift
  • Rigging Editor enables the generic definition of lifting accessories
  • Choice of six different templates with the possibility to set customer-specific heights, lengths, widths and weights of the lifting devices
  • Any planning data such as the load capacity, ground pressure distribution and specific measurements can be exported into a lift plan for each specific work step
  • Technical drawings from all angles can be exported into PDF format
  • Faster and considerably more user-friendly than the previous version

Liebherr Crane Planner 2.0 Provides Lift Planning to Smaller Crawler Cranes
