Futtura offers a site management system solution for supervising tasks at construction sites. The universal construction site supervisor system, including the SiteMetrix Grade and the all- new multi-frequency, multi-GNSS F631 RTK base and rover, helps contractors manage activities at the job site. Contractors can use the Futtura system to localize sites, check grade, configure base stations, set stakes and calculate volumes of material removed.
SiteMetrix Grade Features
- Portable
- Stake out design points for sites
- Collect topo shots to create surfaces for volume comparisons
- Configure, convert and manage files for Futtura GradeMetrix machine control systems
- Create pads, slopes and ramps for either stand-alone or for upload to GradeMetrix machine control systems
- Network RTK compatible
- Supports generic file formats; DXF, DWG and LandXML

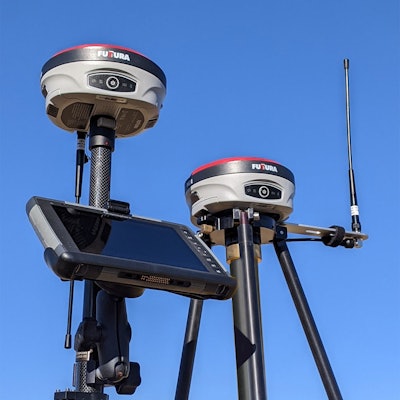

The F631 GNSS receiver is powered by Athena RTK technology. With Athena, F631 provides RTK performance when receiving corrections from a static base station or network RTK correction system. With multiple connectivity options, the F631 allows for RTK corrections to be received over radio, cell modem, Wi-Fi, Bluetooth or serial connection. F631 delivers centimeter-level accuracy and can be used in construction environments.
F631 Ruggedized Base and Rover Features
- Multi-frequency, multi-GNSS GPS/GLONASS/BeiDou/Galileo/QZSS/SBAS/WAAS capable (all standard)
- Integrated 400/900 Mhz dual band SATEL radio
- Supports both UHF and spread spectrum frequencies
- Powerful WebUI with serial, Bluetooth and Wi-Fi connections
- Integrated global cellular modem
- Integrated IMU for tilted pole measurements
- Athena RTK engine provides GNSS performance
- Supports long-range 50 km RTK baselines
