HCM Skid-Steer Drills

Teirockdrillshcm250quarryblast 10239300
Tei 10950446

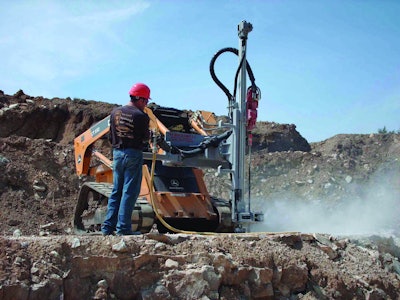

The HCM Skid Steer series is manufactured with a universal skid-steer mounting plate, which allows the drill tools to be attached to almost any skid steer. It can be attached or detached in less than five minutes. The drill uses 5-ft. drill pipes or steel and comes with a range of rotary top drives and drifters that enable hole sizes from 1 1/2 to 8 in. and depths up to 200 ft. Attachment weights range from 144 to 237 lbs. The 360° positioner and 2-ft. crowd cylinder enable drilling at any angle. Standard features include a patented drill feed system and single hydraulic clamp. Options include a misting system for dust suppression, double clamps and radio/cable controls.

Product brochure

Request More Information
Fill out the form below to request more information about HCM Skid-Steer Drills
