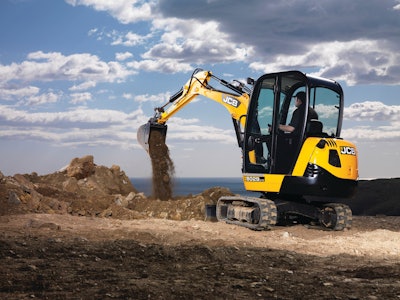

The JCB 8029 CTS compact excavator is a 2.9-ton conventional-tail-swing excavator which features short pitch tracks and auto kick-down with 11% increase in travel speed to 3.1 mph.
- New valve block with 17% longer spool stroke for increased precision control
- Dedicated boom with longer dipper arm
- Longer-stroke dipper cylinder and revised dig-end geometry enable bucket to clean right up to the dozer blade
- Low-effort servo controls
- Electro-proportional auxiliaries
- Bucket-to-auxiliary changeover allows operator to switch oil flow from bucket cylinder via a ball valve to the quick-release connectors
- 3-cylinder, 24-hp engine and Nachi variable displacement hydraulic pump
- Swing turrent is 1.3 in. lower
- Top roller replaces metal skid plate for enhanced durability of short pitch tracks
- Open-turret design and angled track legs allows material to fall from undercarriage to help prevent build up within the track frame
- Automotive-grade cab interior
- Tractive effort: 5,620 lbf.
- Digging depth: just under 9.2 ft.
