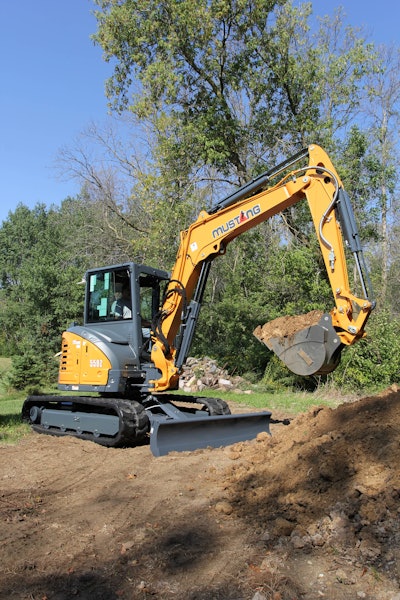

Mustang 550Z Compact Excavator

5.5-metric ton model features a Yanmar Tier 4 engine with electronic throttle, ECO mode and auto deceleration features

Mustang 550Z Cover MR 566746b965050
Mustang 4 C

The 5.5-metric ton 550Z is equipped with a 47.6-hp Yanmar Tier 4-certified, turbocharged diesel engine features an electronic throttle for precise control.

  • 11,850/12,247-lb. (canopy/cab) operating weight, 12-ft. 9.5-in. digging depth and 9,419-lb. bucket breakout
  • Switch-activated ECO mode reduces engine speed by 10% without sacrificing power
  • Auto deceleration decreases engine speed to idle after four seconds without hydraulic movement
  • Proportional auxiliary hydraulic rocker switch allows adjustment of hydraulic flow for optimal attachment performance
  • Boom offset swing of 68° in both directions
  • Standard ISO or optional backhoe control pattern selectable via a mechanical lever
  • Integrated digital display features recordable maintenance history plus records hours used for the past 90 days
  • Angle blade with float and bolt-on cutting edge available as factory installed options
  • Hydraulic angle blade can be angled 25° and can be simultaneously angled and raised or lowered to reduce the amount of time backfilling
  • Operator station includes a four-way adjustable seat and optional cab enclosure with heat or heat/air conditioning systems
  • Tool-free component access via large swing-out doors, removable cab floor panels, kick plates and tipping seat
