New Holland C-Series Mini Excavators

Line of six new compact excavator models designed with more power, auto-shift travel system, auto idle, generous ground clearance and dozer blade lift height

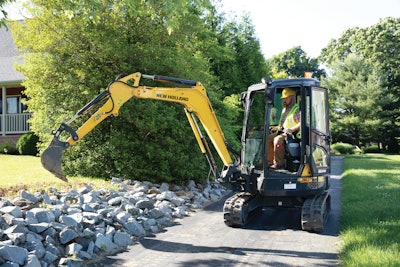

New Holland E30 C 103
Newhollandconstructioncnh 10072470

The E17C, E26C, and E37C zero tailswing (ZTS) and E30C and E60C short-radius tailswing (SR) excavators include a boom that can be offset left or right within an operating range. The E57C conventional tailswing unit is available for those applications where limited space isn’t an issue.

  • Operating weights from 3,910 to 12,940 lbs. and power ranges from 15.8 to 63 hp
  • Feature 7-ft. 9-in. to 13-ft. 4-in. maximum dig depths with breakout force from 3,490 to 9,550 lbs.
  • Center-swing boom arm lets operators dig, fill and grade along near-perpendicular angles like footings, curbs and foundations
  • Advanced hydraulics designed to be fast, precise, smooth and powerful and include standard auxiliary hydraulics
  • Auto Shift traveling system automatically shifts between high and low depending upon load
  • Auto-Idle feature will automatically reduce engine rpm during inactivity to reduce fuel consumption and operator fatigue
  • Larger models include a Power Shift feature for jobs requiring an extra boost
  • Cab feature four sides of glass with 360° visibility and floor to ceiling sight lines
  • Ergonomically designed suspension seat, adjustable arm rests and a spacious environment help reduce operator fatigue
  • Easily accessible control levers and instrument display positioned within operator's line of sight
  • Glass roof panel in cabs aids visibility and a roller shade is provided to reduce glare, heat and sunlight
  • Ground line serviceability access and wide open access provides easy sight checks of key service points, hoses and belts and fluid levels
  • Same side placement of key maintenance points including air cleaner, oil filter, fuel filter, and water separator
